Camera - B-Pillar - Remove And Replace: Removal

  1. Remove the LH B-pillar applique. See APPLIQUE - B-PILLAR - LH (REMOVE AND REPLACE) .

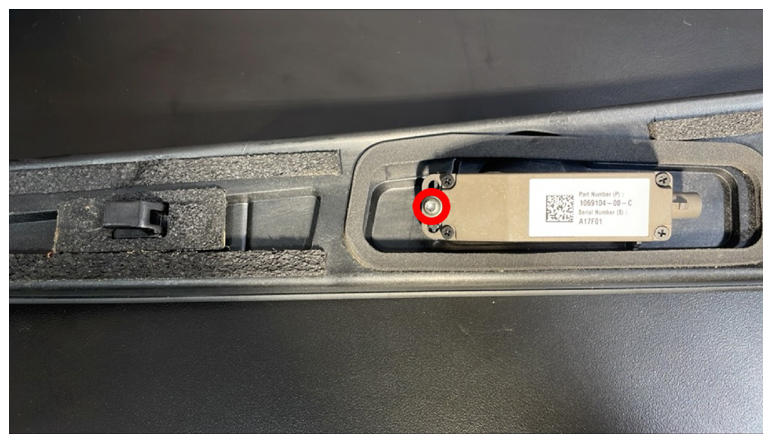

  2. Remove the screw that attaches the B-pillar camera to the applique.
    G15203078Courtesy of TESLA, INC.
    NOTE: T10 (mini ratchet bit set). Torque 0.67 N.m.

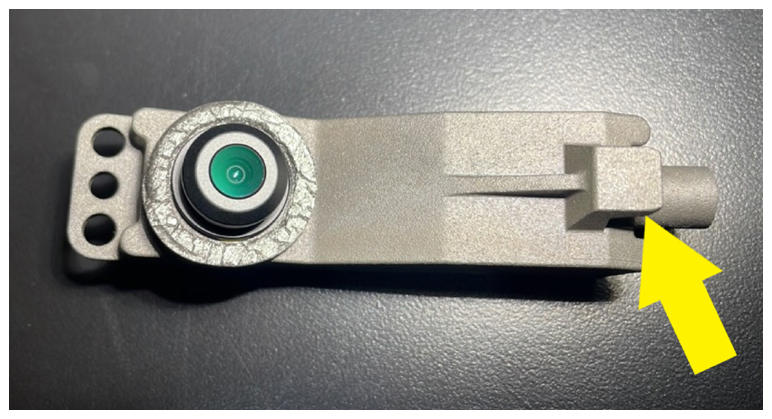

  3. Release the tab that attaches the camera to the applique, and then remove the camera from the applique.
    NOTE: Remove and discard the old lens rubber gasket if stuck inside the applique.
    G15203079Courtesy of TESLA, INC.
