Seal - Door- Front - Rocker - LH - Remove And Replace: Removal

Raise and support the vehicle Raise Vehicle - 2 Post Lift
Open door.

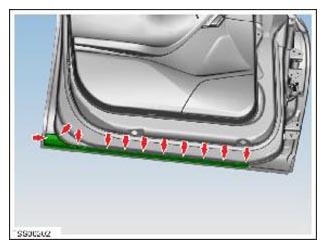

Carefully release clips (x11) securing lower seal to door assembly.
WARNING: To avoid personal injury, eye protection must be worn when performing this operation.

CAUTION: Take care not to damage component(s).

NOTE: Components have been removed in this graphic to aid clarity.

Courtesy of TESLA, INC.

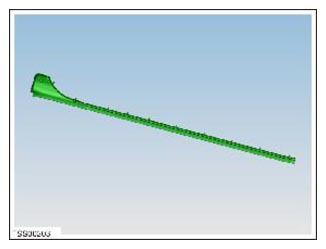

Remove lower door seal.

Courtesy of TESLA, INC.
