Cover - Seat Back - Driver's (Premium Seats) - Remove And Replace: Removal

  1. Move the driver's seat fully forward.

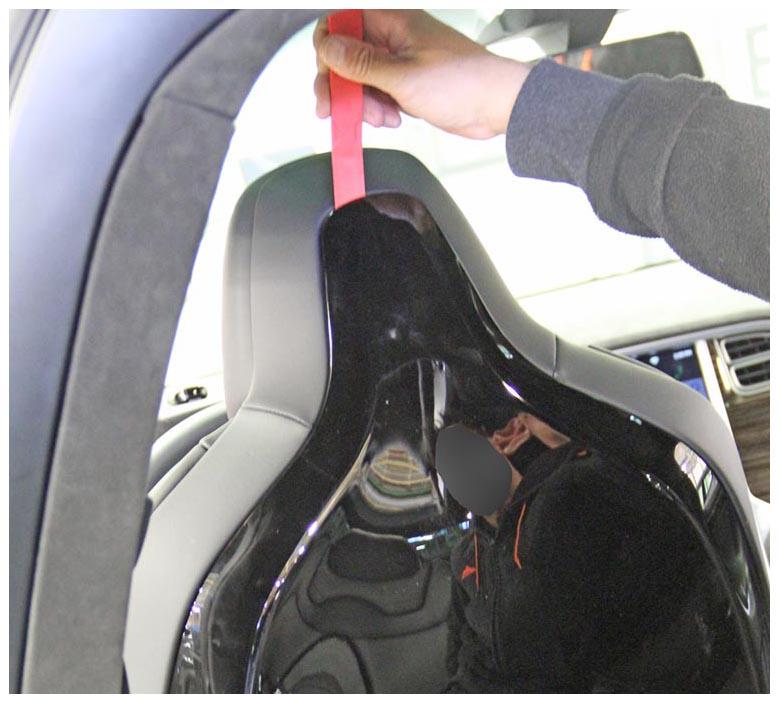

  2. Starting from the top of the seat back cover, use a trim tool to release the clips (x12) that secure the seat back cover.
    CAUTION: The carpet is still attached to the bottom of the seat back cover.
    CAUTION: Take care not to damage component(s).
    G14976497Courtesy of TESLA, INC.

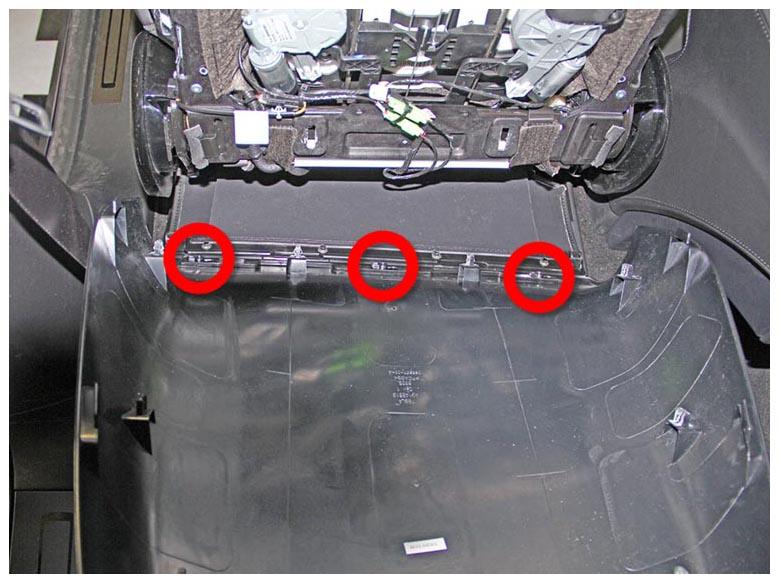

  3. Release the clips (x3) that secure the carpet to the bottom of the seat back cover.
    G14976498Courtesy of TESLA, INC.

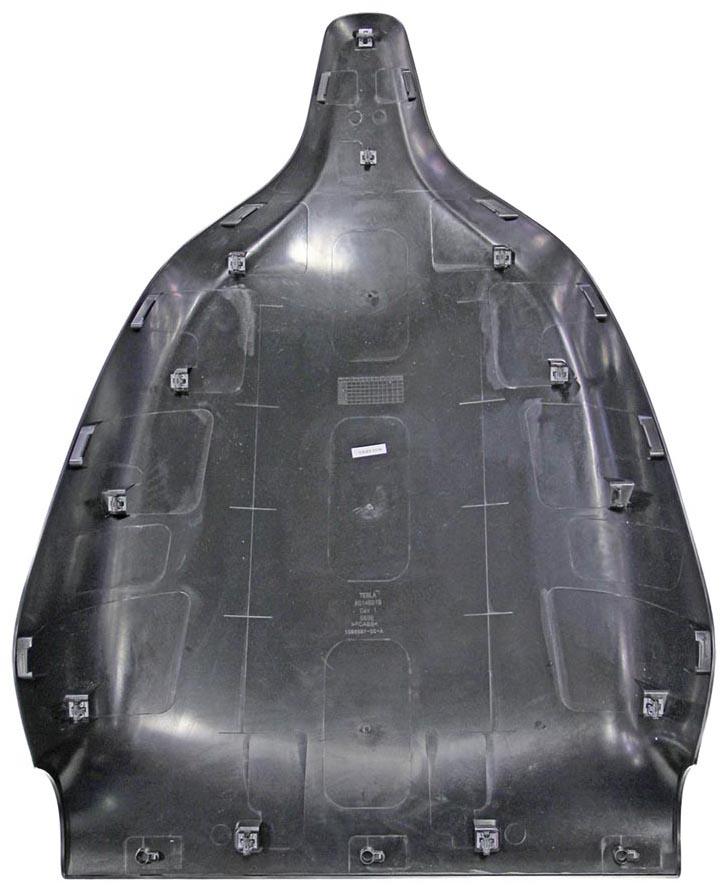

  4. Remove the seat back cover. Place the seat back cover on a soft, clean surface.
    G14976499Courtesy of TESLA, INC.
