Pivot Lock - Seat Back - 2nd Row Seat - RH - Remove And Replace: Removal

  1. Remove rear seat back rest assembly, refer to SEATBACK ASSEMBLY - 2ND ROW - RH (REMOVE AND INSTALL)
  2. Remove E-clip securing pivot lock.

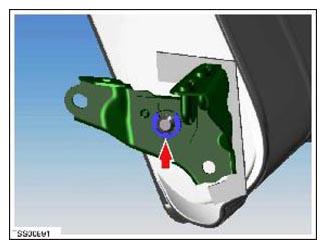

    G14976547Courtesy of TESLA, INC.
  3. Slide pivot lock from backrest frame.
