Antenna - Satellite Radio - Liftgate-Mounted - Remove And Replace: Removal

  1. Remove the liftgate glass Liftgate Glass (Remove And Install) .

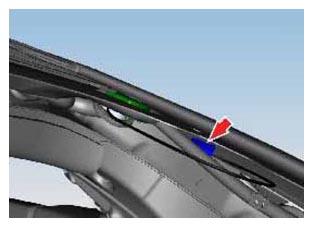

  2. Disconnect the XM antenna connector.
    G14980051Courtesy of TESLA, INC.

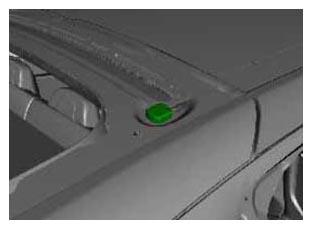

  3. Release the XM antenna from the adhesive bond.
  4. Release the wiring harness from the liftgate.
    NOTE: Note installed position of components before removal.
  5. Remove the XM antenna.
    G14980052Courtesy of TESLA, INC.
