Lamp and Camera Assembly - Side Repeater - Front - LH - Remove And Replace: Removal
WARNING:
Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration
.
- If equipped with air suspension, set the vehicle to High or Very High , and then place the vehicle in Jack Mode .
- Press the brake pedal to turn on the drive rails.
- Turn the steering wheel fully to the left.

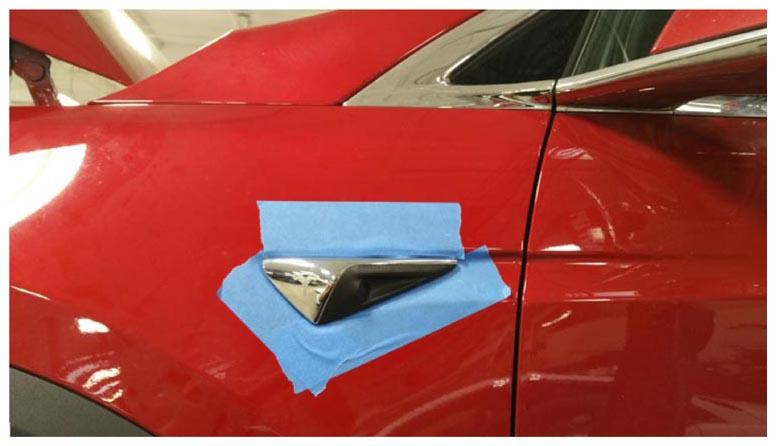

- Apply protective tape to the fender around the LH front side repeater lamp and camera assembly.

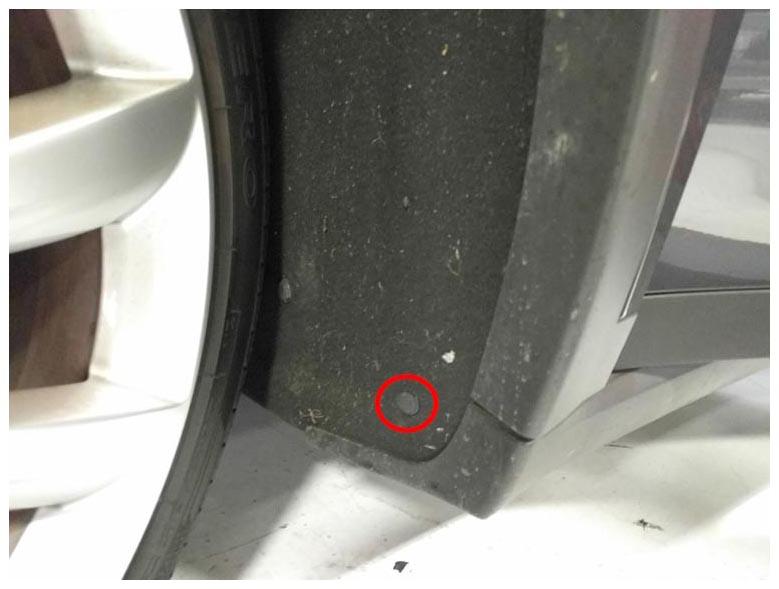

- Release the lowest outer clip from the rear of the LH wheel arch liner.
- Move the rear edge of the wheel arch liner and any NVH padding to access the side repeater light from inside the fender.
- Disconnect the electrical connectors (x2) from the back side of the LH front side repeater lamp and camera assembly.
- Release the tabs (x2) on the front and bottom-facing edges of the LH front side repeater lamp and camera assembly, and then carefully pry the repeater away from the fender.CAUTION: If reinstalling the same side repeater, take care not to damage the mounting tabs.CAUTION: Care must be taken to avoid damage to paintwork and exterior trim.NOTE: Repeater removed from vehicle for clarity
