Seal - Hood - Remove And Replace: Removal

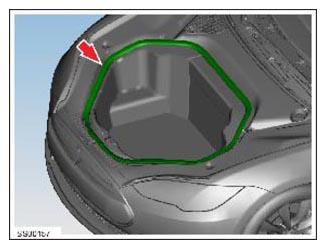

  1. Open the luggage compartment.
  2. Release the seal from luggage compartment surround.
    NOTE: Components have been removed in this graphic to aid clarity.
  3. Remove the seal from the vehicle.
    G14975391Courtesy of TESLA, INC.
