Gas Strut - Trunk - LH - Remove and Replace: Remove

  1. Open the trunk and support it with a prop.

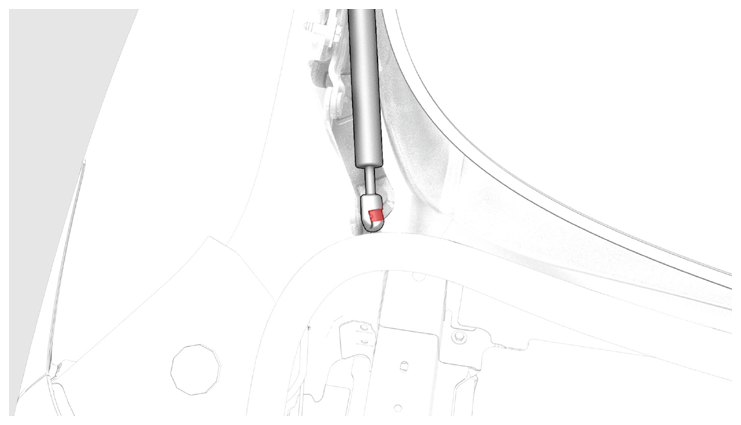

  2. Release the clip that attaches the lower end of the LH trunk gas strut to the hinge on the vehicle.
    G14739422Courtesy of TESLA, INC.

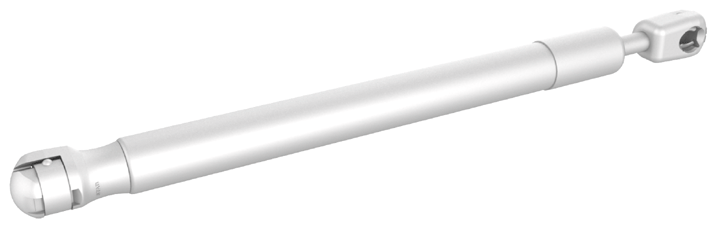

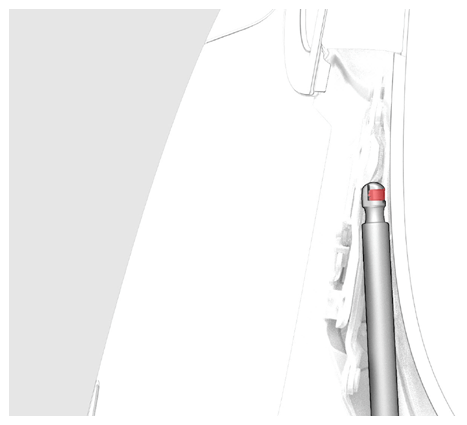

  3. Release the clip that attaches the upper end of the LH trunk gas strut to the hinge on the trunk lid, and then remove the strut from the vehicle.
    G14739423Courtesy of TESLA, INC.
    G14739424Courtesy of TESLA, INC.
