Motor - Seat Track - Driver Seat - Remove and Replace: Remove
- Open all doors and lower all windows.
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH - Remove And Replace .
- Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH - Remove And Replace .
- Release the bottom half of the LH front door seal.
- Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH - Remove and Replace .

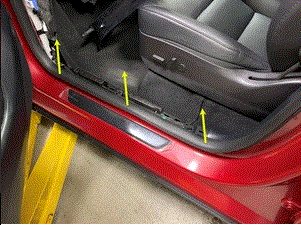

- Use a clip prytool to release the LH front seat harness from the sill trim clips (x3).

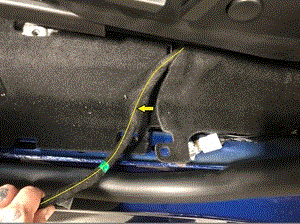

- Pull the LH front seat harness from under the LH front cabin carpet.
- Move the LH front seat forward, and then remove and discard the LH front seat rear fasteners (x2).
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- Ratchet/torque wrench
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
- Move the LH front seat backward, and then remove and discard the LH front seat front fasteners (x2).
Tip: Use of the following tool(s) is recommended:
- Torx Plus T45 socket
- Ratchet/torque wrench
- Cordless Ratchet/Impact Driver
- Flex head ratchet/flex head torque wrench
- Tilt the LH front seat rearward.NOTE: It is not necessary to disconnect the LH seat harness from the body controller. Take care when moving the seat. Ensure the carpet is not damaged.

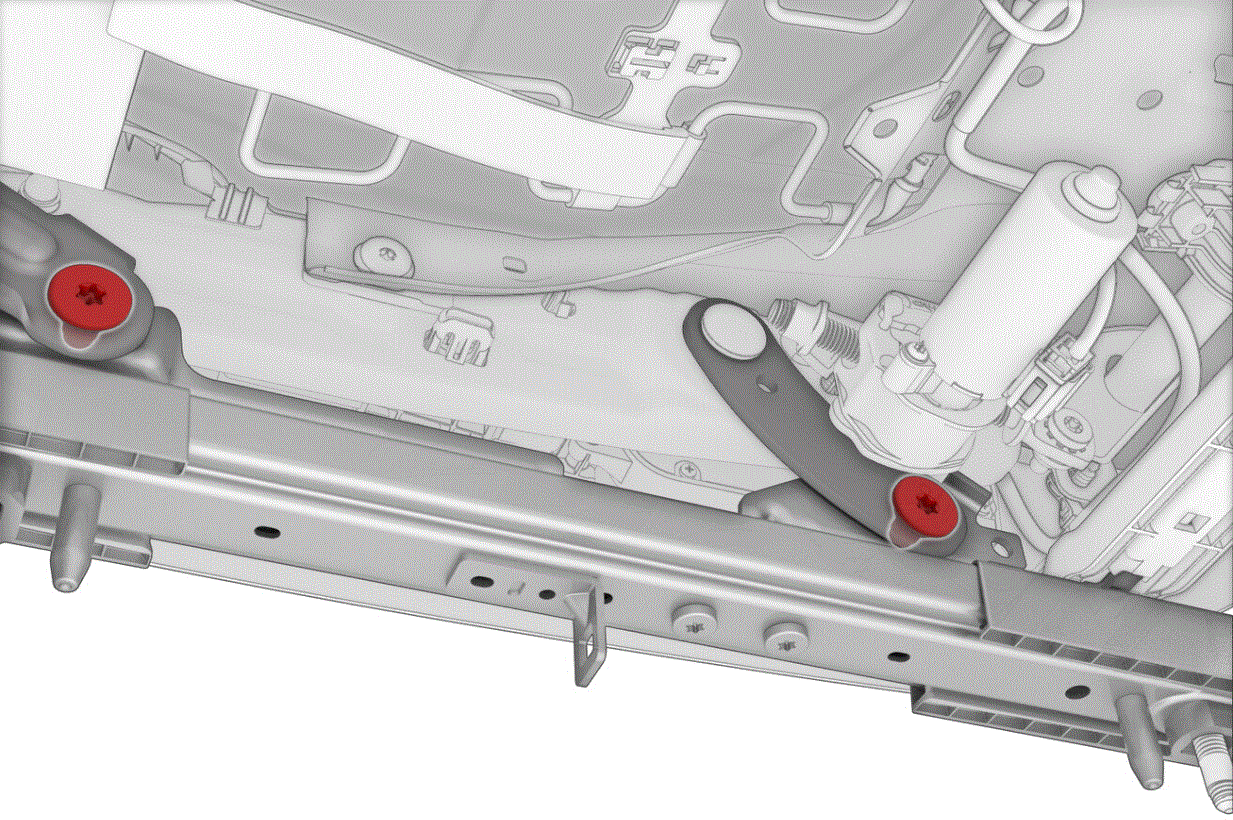

- Remove and discard the bolts (x2) that attach the driver seat track motor to the seat cushion frame.
Tip: Use of the following tool(s) is recommended:
- Torx T50 Bit Stubby
- Ratchet/torque wrench
- 3 in extension
- Flex head ratchet/flex head torque wrench
- Use a clip prytool to remove the harness clip from the seat track motor.

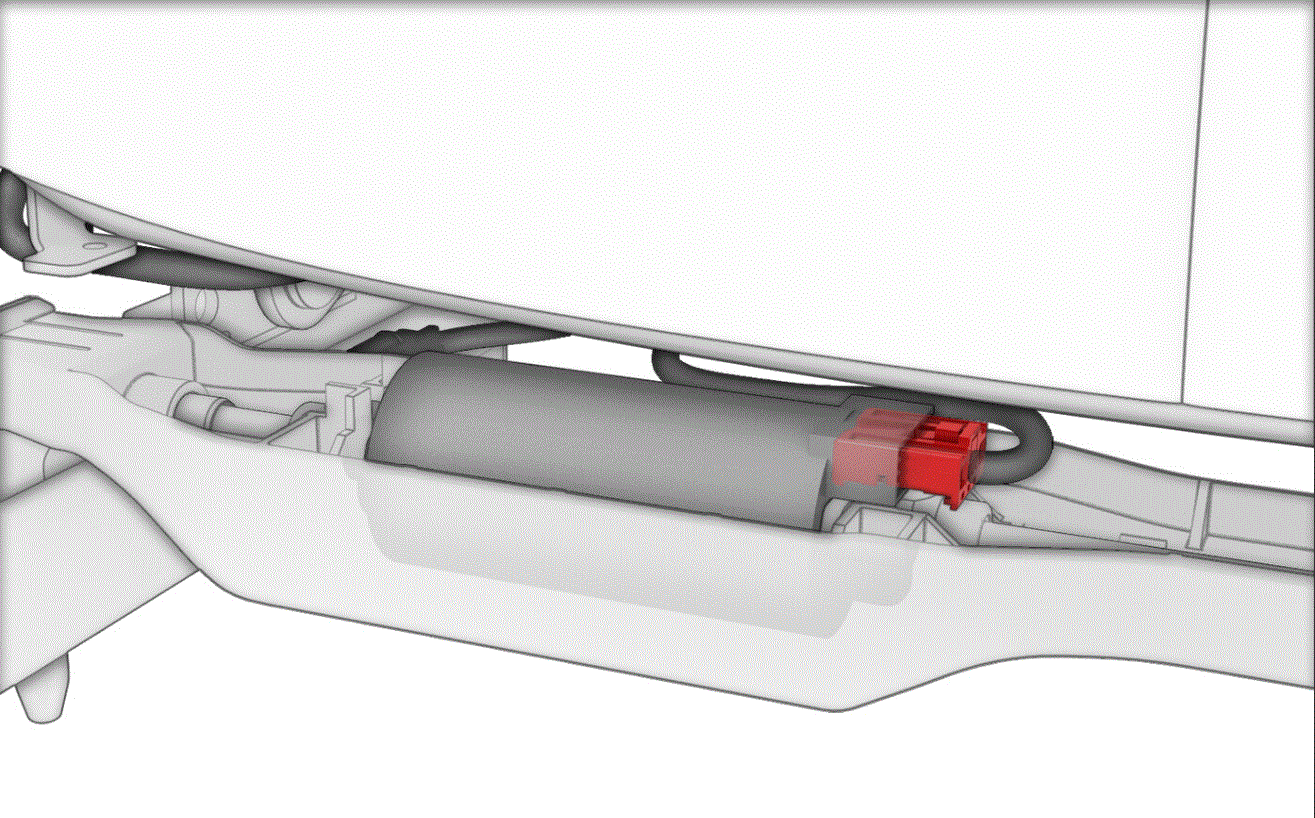

- Disconnect the electrical harness from the driver seat track motor connector.

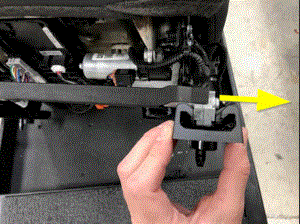

- Release the outboard track from the track motor bridge.NOTE: Pry up on the track motor bridge tab and slide the outboard track away to release.
- Release the track motor bridge from the inboard track.NOTE: Pry up on the track motor bridge tab and slide the track motor bridge away from the inboard track.
