Wheel Arch Liner - Front - LH - Remove and Replace: Remove

  1. Remove the LH front wheel. See WHEEL (REMOVE AND INSTALL) .
  2. Remove the bolt and release the clips (x18) that attach the LH front wheel arch liner to the vehicle, and then remove the liner from the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Newer vehicles might have fewer fasteners than pictured.
    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension

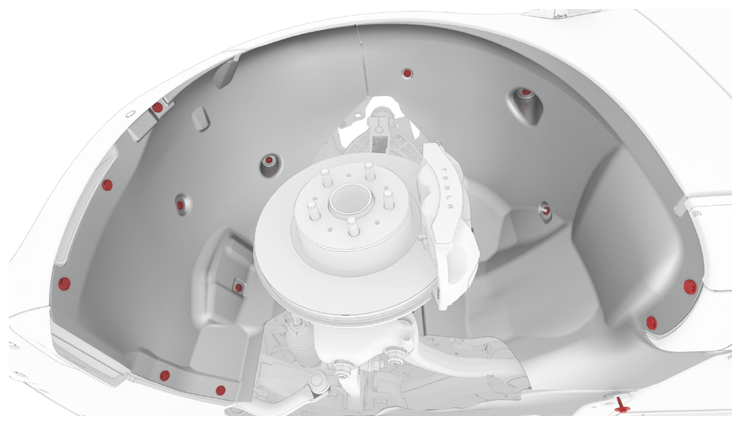

    G14739740Courtesy of TESLA, INC.

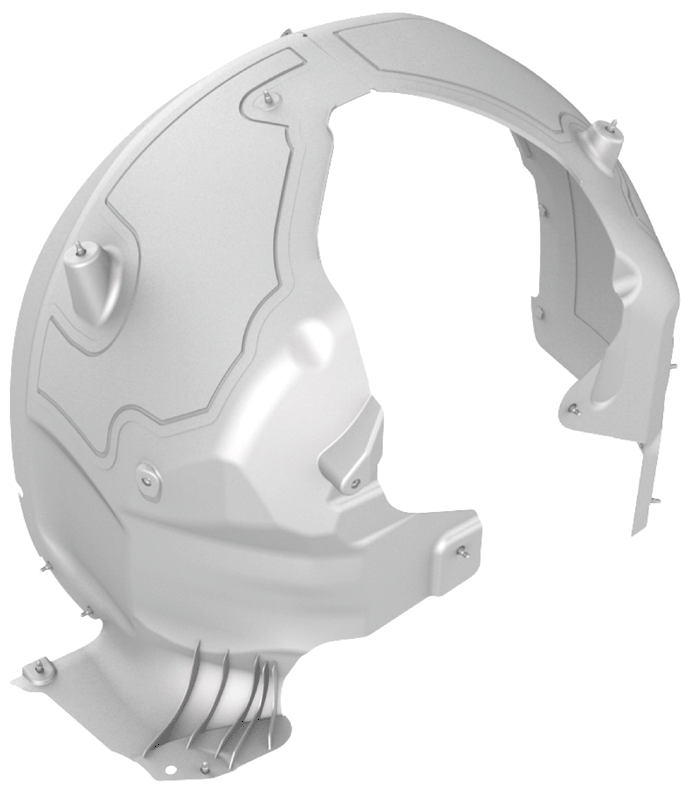

    G14739741Courtesy of TESLA, INC.
