Trim - Package Tray - Remove and Replace: Install

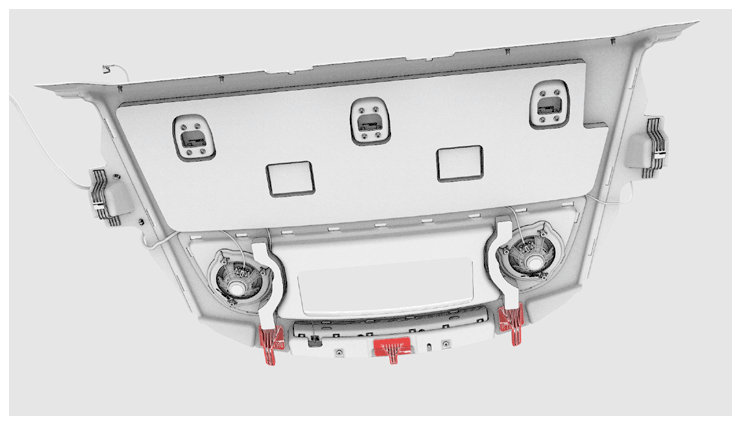

  1. Install the package tray trim to the vehicle.
    NOTE: Slide the package tray rearwards to install it to the vehicle, and then attach the package tray to the body with tabs.
    G14741122Courtesy of TESLA, INC.

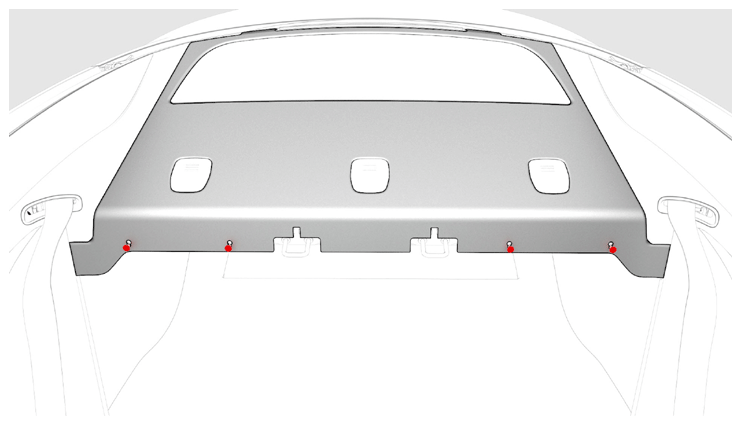

  2. Install the clips that attach the package tray trim to the body.
    G14741123Courtesy of TESLA, INC.

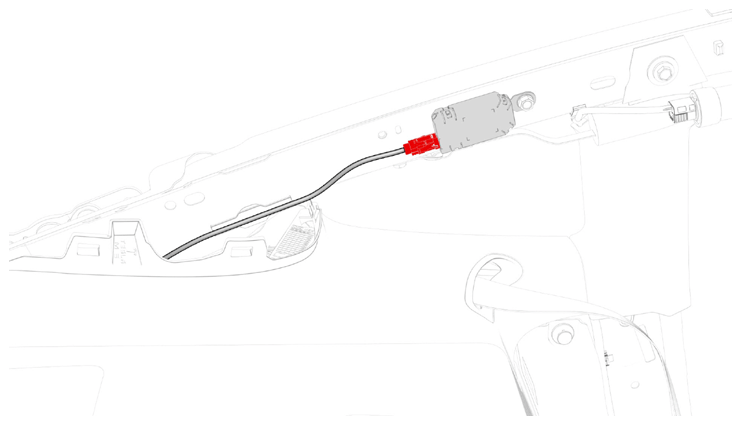

  3. Connect the electrical connector to the antenna amplifier.
    G14741124Courtesy of TESLA, INC.

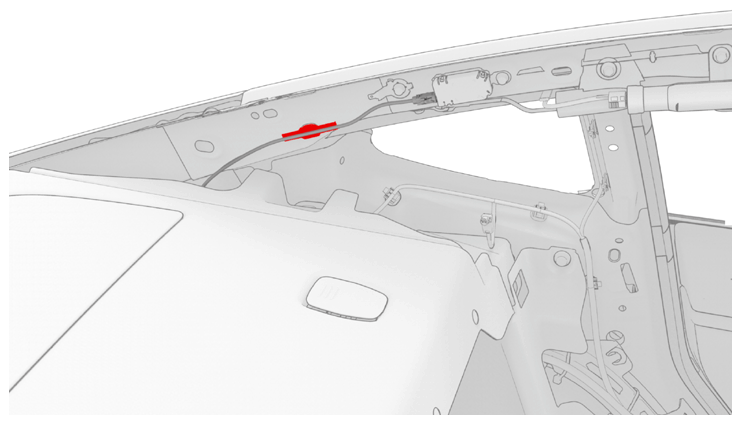

  4. Install the clip that attaches the antenna amplifier wiring harness to the body.
    G14741125Courtesy of TESLA, INC.

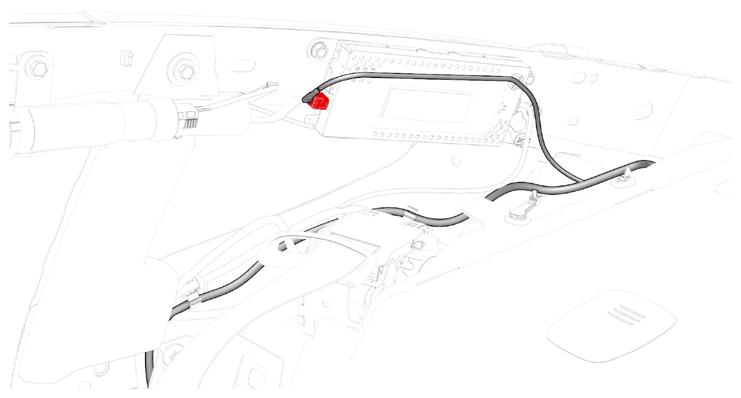

  5. Connect the speaker harness connector to the tuner.
    G14741126Courtesy of TESLA, INC.

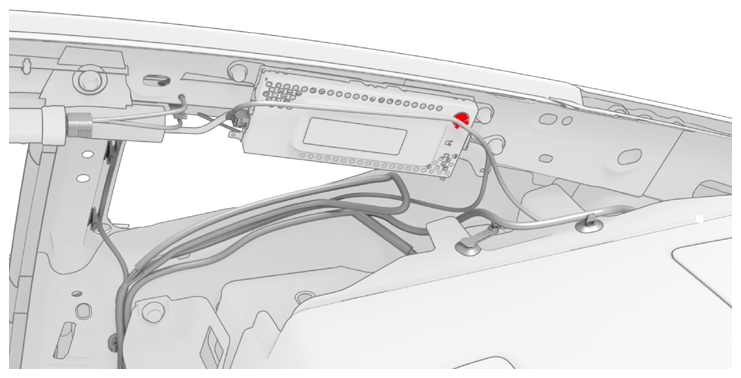

  6. Install the clip that attaches the speaker wiring harness to the tuner.
    G14741127Courtesy of TESLA, INC.

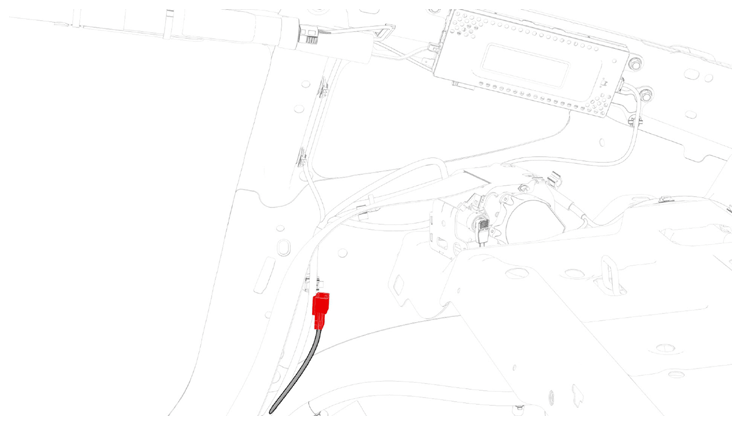

  7. Connect the package tray harness connector to the RH body electrical harness.
    G14741128Courtesy of TESLA, INC.

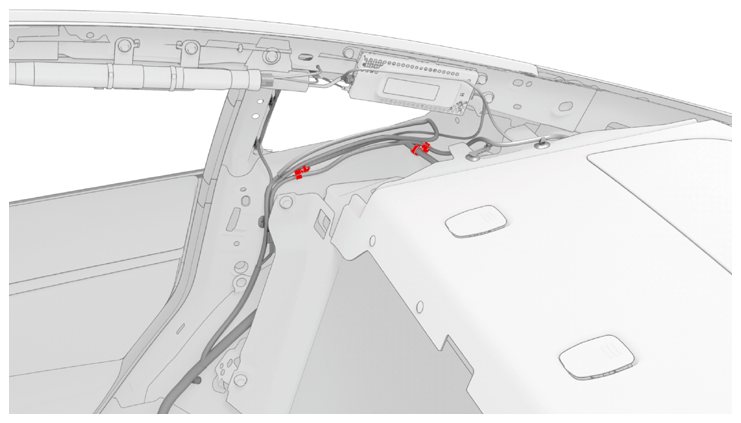

  8. Install the clips that attach the package tray wiring harness to the C-pillar.
    G14741129Courtesy of TESLA, INC.
  9. Install the RH rear C-pillar trim. See TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .
  10. Install the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  11. Install the RH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  12. Install the RH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  13. Install the LH rear C-pillar trim. See TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .
  14. Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  15. Install the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND REPLACE) .
  16. Install the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  17. Move the driver seat and the front passenger seat to their original position.
