Ankle Catcher - Remove and Replace: Remove

  1. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

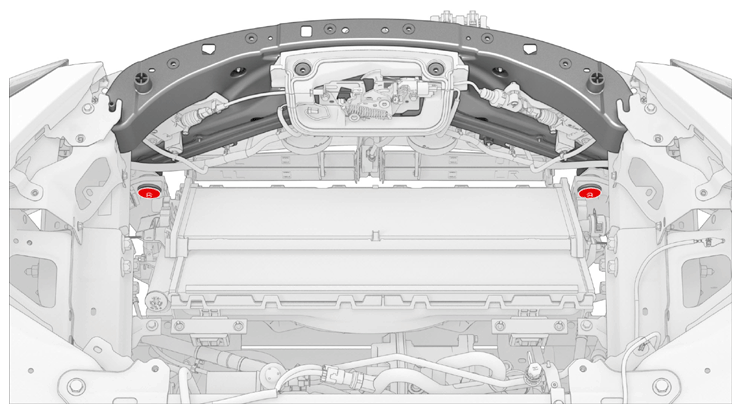

  2. Remove the bolts that attach the bottom of the cooling fan module to the ankle catcher.
    NOTE: Lift the condenser fan module up to ease removal of the bolts.
    G14738728Courtesy of TESLA, INC.

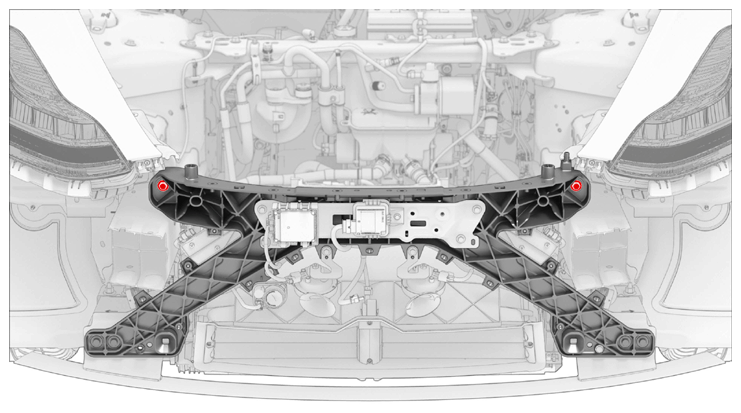

  3. Loosen but do not remove the bolts that attach the upper section of the front end carrier to the body.
    G14738729Courtesy of TESLA, INC.

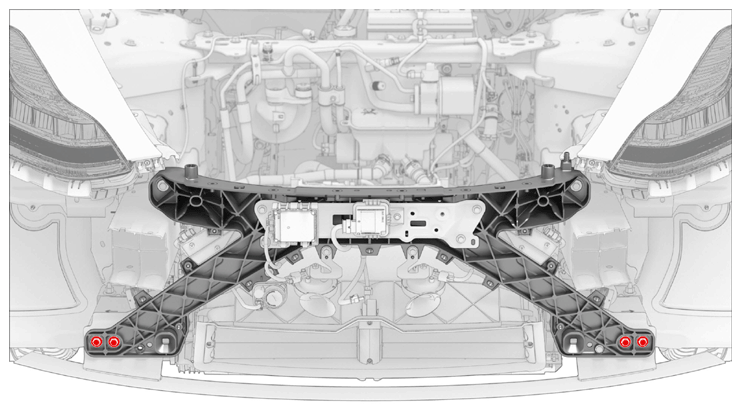

  4. Remove the bolts that attach the front end carrier to the crash cans.
    G14738730Courtesy of TESLA, INC.

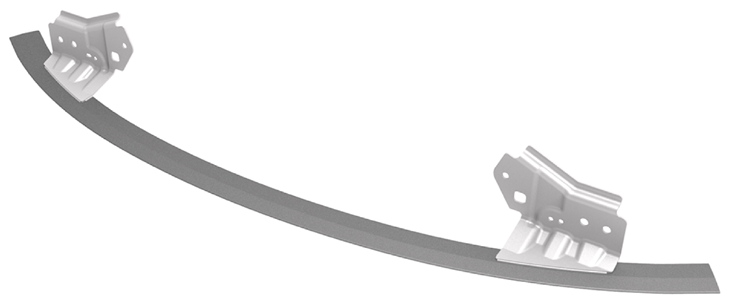

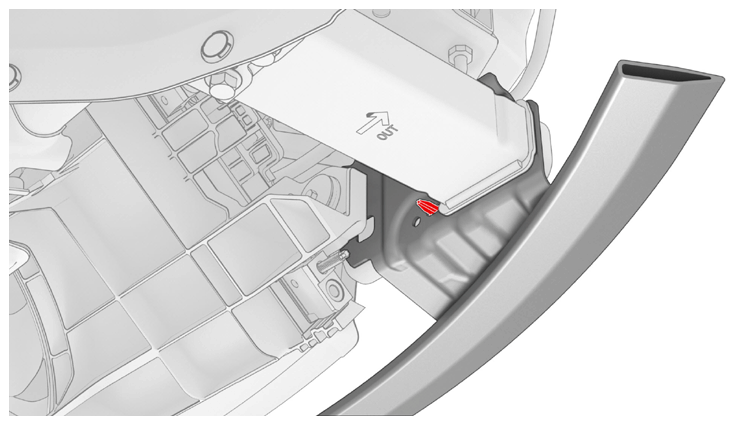

  5. Move the front end carrier forward, slide the ankle catcher off the front end carrier locating posts, and then remove the ankle catcher from the vehicle.
    G14738731Courtesy of TESLA, INC.
    G14738732Courtesy of TESLA, INC.
