Bracket - Headlight - LH - Remove and Replace: Remove

NOTE: If the headlight bracket is not available as a standalone serviceable part, the headlight assembly (which includes the bracket) should be replaced.
  1. Remove the headlight. See HEADLIGHT - LH (REMOVE AND REPLACE) .

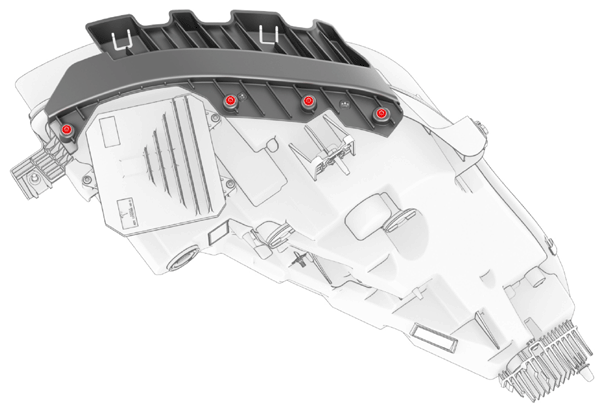

  2. Remove the screws that attach the bracket to the headlight, and then remove the bracket from the headlight.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 6 in extension
    G14744200Courtesy of TESLA, INC.
