Horn - High Tone - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  3. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  4. Remove the underhood storage unit carpet. See CARPET - UNDERHOOD STORAGE (REMOVE AND INSTALL) .
  5. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  6. Remove the LH and RH front wheels. See WHEEL (REMOVE AND INSTALL) .
  7. Remove the front aero shield. See PANEL - AERO SHIELD - FRONT (REMOVE AND REPLACE) .
  8. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

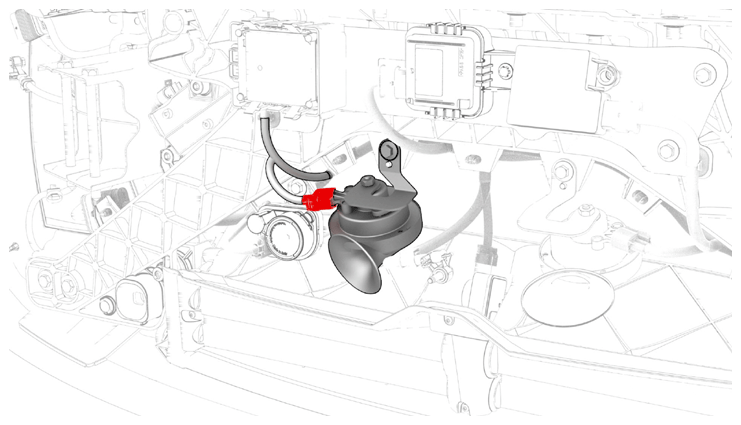

  9. Disconnect the electrical connector from the high tone horn.
    G14744459Courtesy of TESLA, INC.

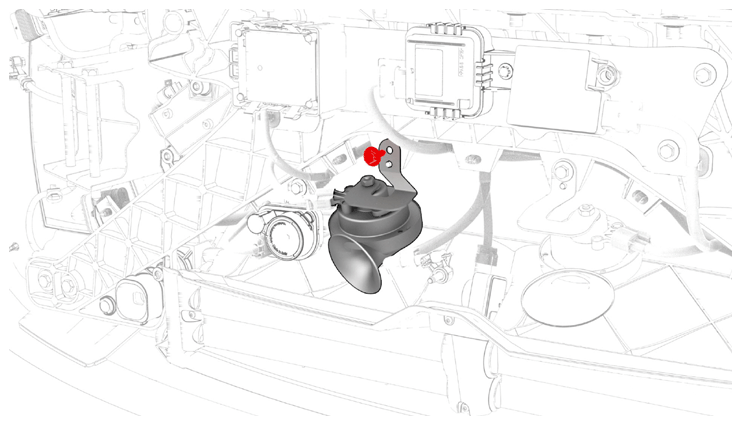

  10. Remove the bolt that attaches the high tone horn to the carrier, and then remove the horn from the vehicle.

    9 N.m (6.6 ft-lbs)

    G14744460Courtesy of TESLA, INC.

    North America

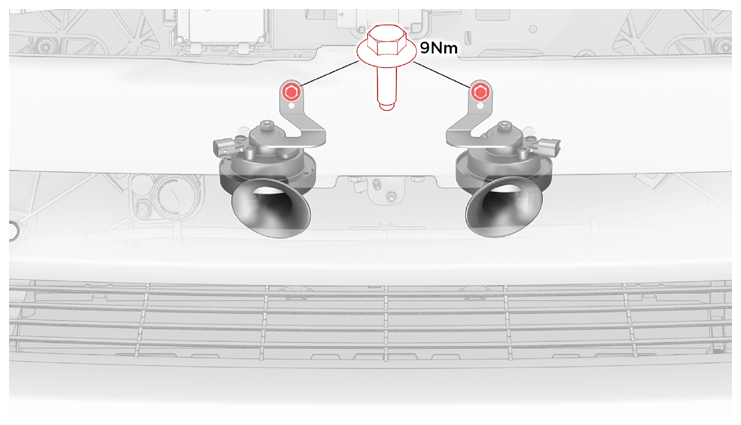

    Fig 1: High Tone Horn Bolts With Torque Specification (North America)
    G14744461Courtesy of TESLA, INC.

    EMEA

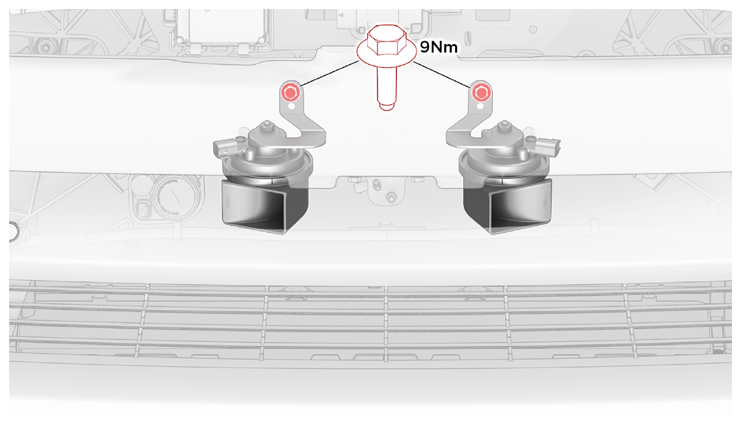

    Fig 2: High Tone Horn Bolts With Torque Specification (EMEA)
    G14744462Courtesy of TESLA, INC.

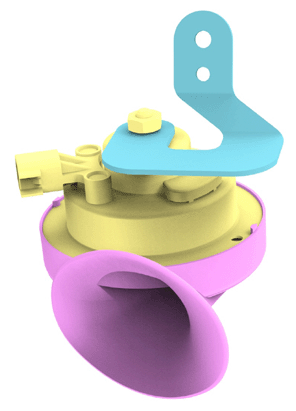

    G14744463Courtesy of TESLA, INC.
