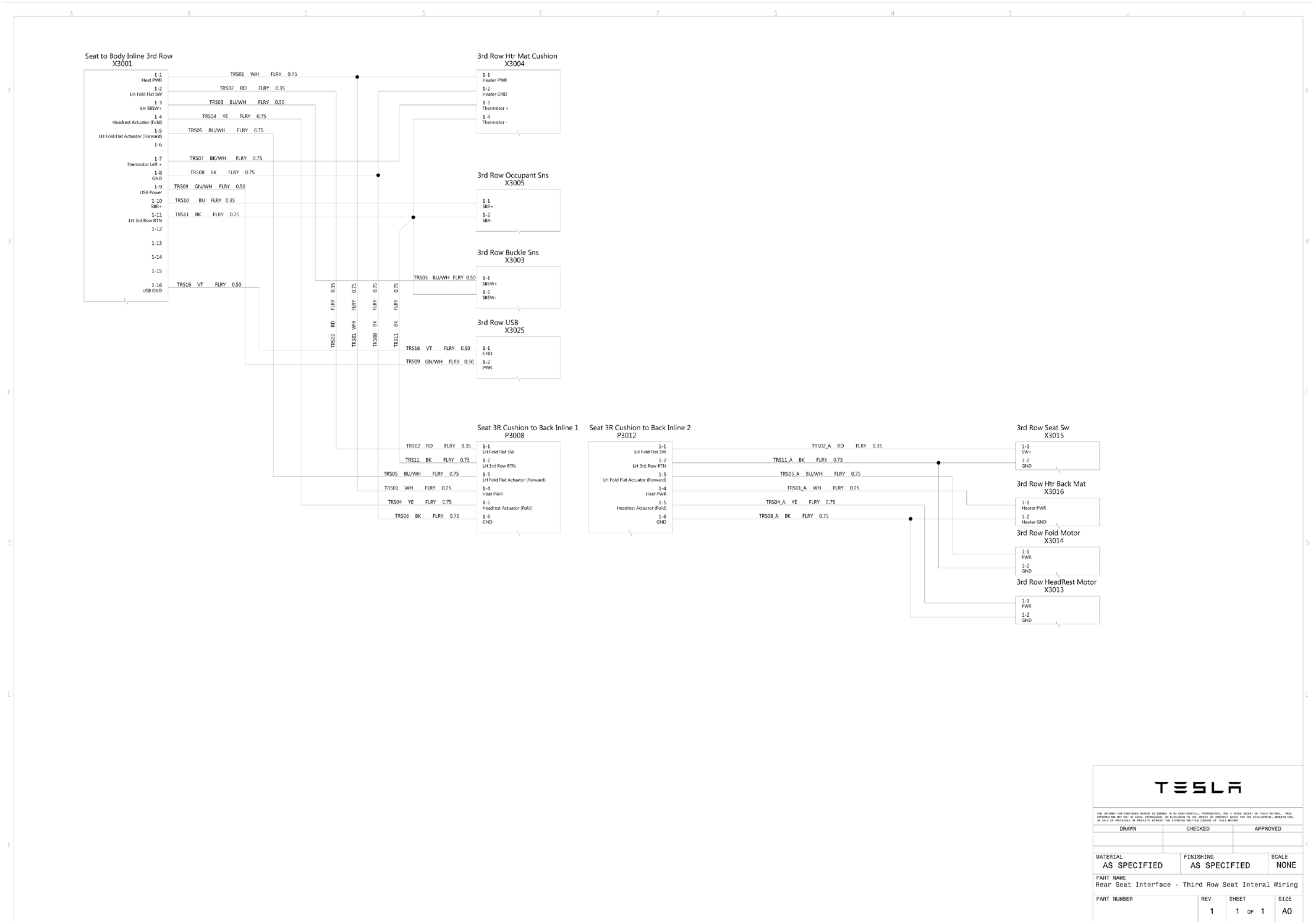

Rear Seat Internal Wiring - 3rd Row - Wiring Diagram [4/25/2019 - 10/20/2019]

G15288639

Courtesy of TESLA, INC.
