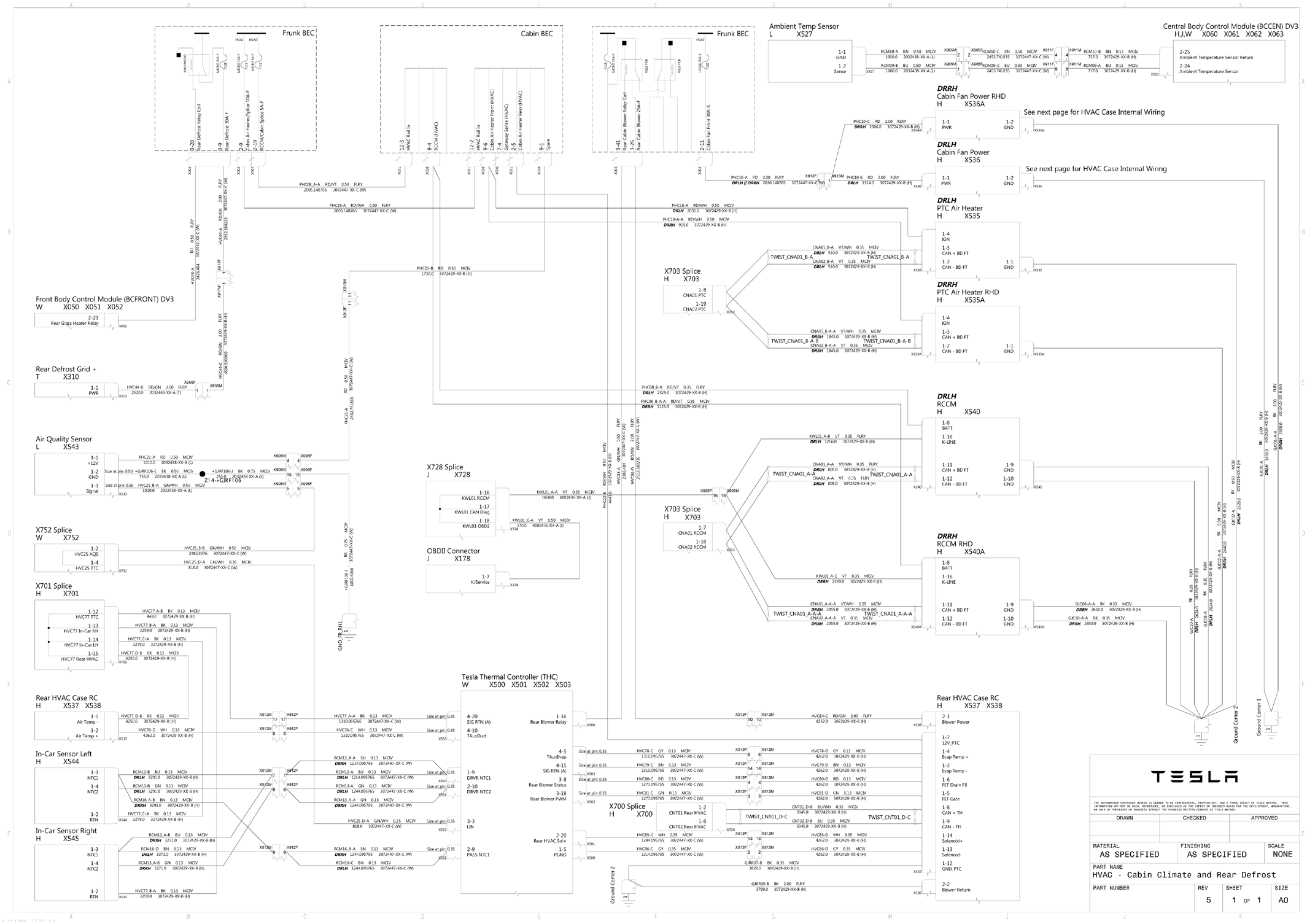

HVAC - Cabin Climate and Rear Defrost - Wiring Diagram [4/25/2019 - 10/20/2019]

G15288618

Courtesy of TESLA, INC.
