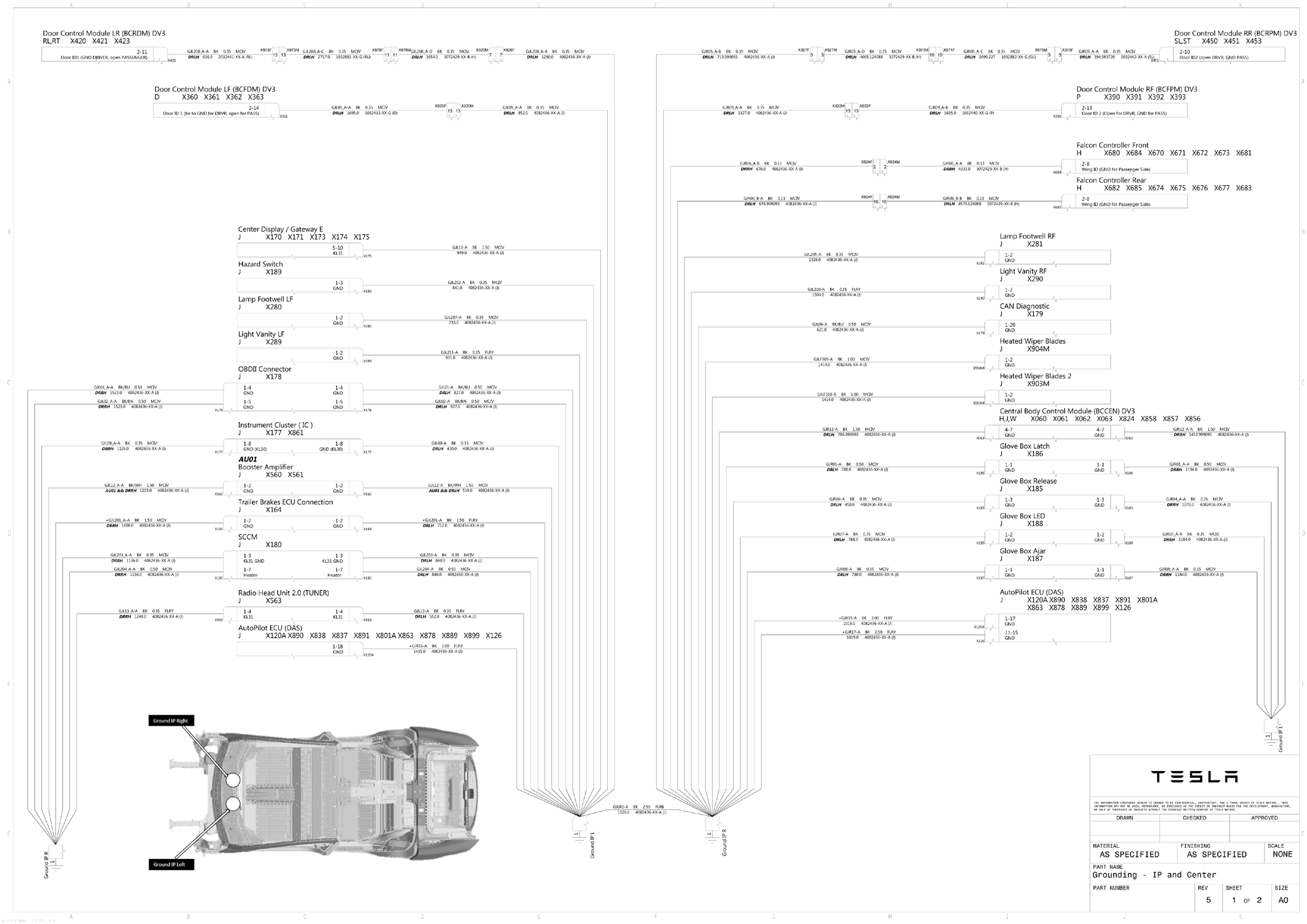

Grounding - IP and Center 1/2 -IP - Wiring Diagram [4/25/2019 - 10/20/2019]

G15288609

Courtesy of TESLA, INC.
