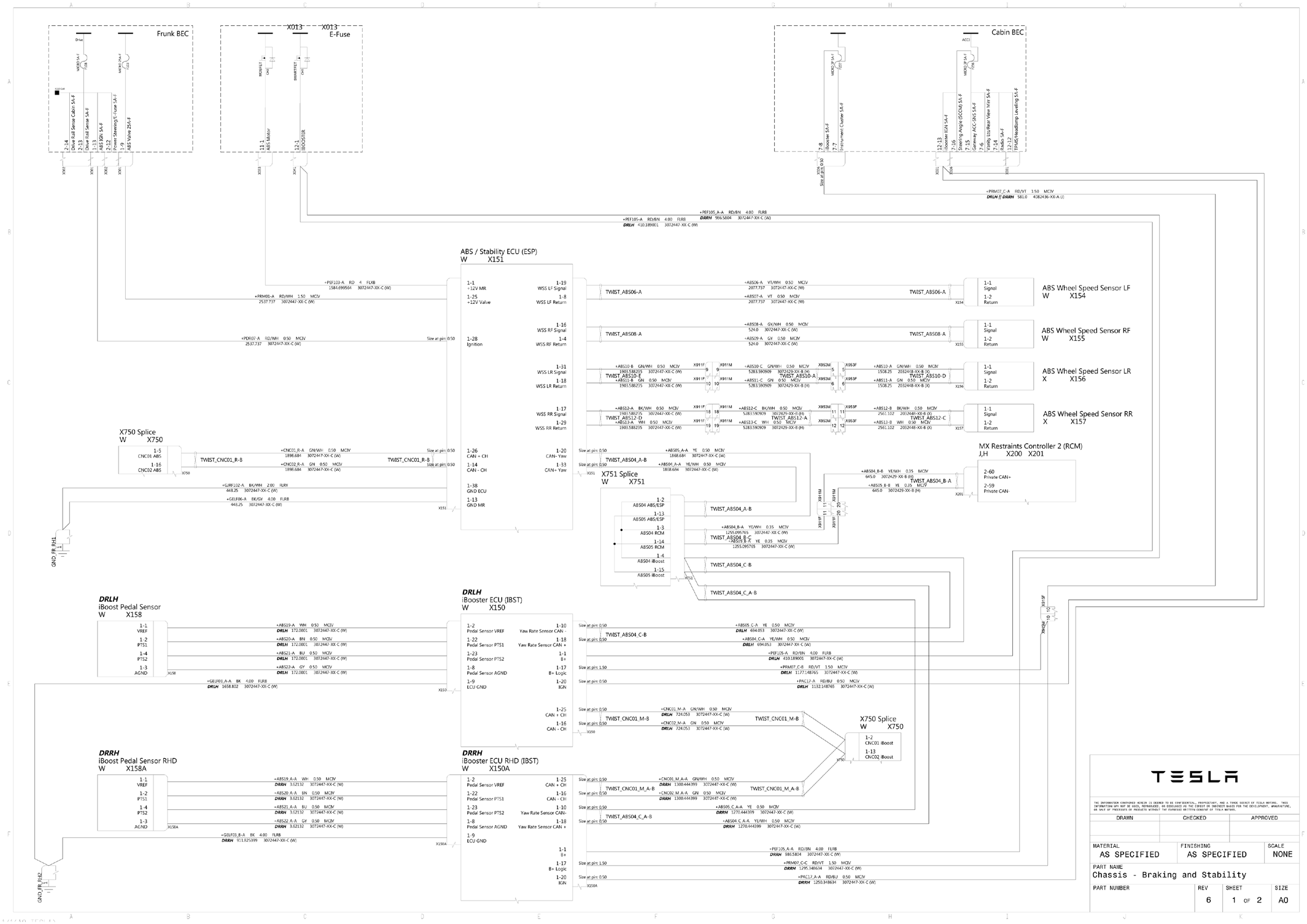

Chassis - (Braking and Stability) 1/2 - Braking and Stability - Wiring Diagram [4/25/2019 - 10/20/2019]

G15288582

Courtesy of TESLA, INC.
