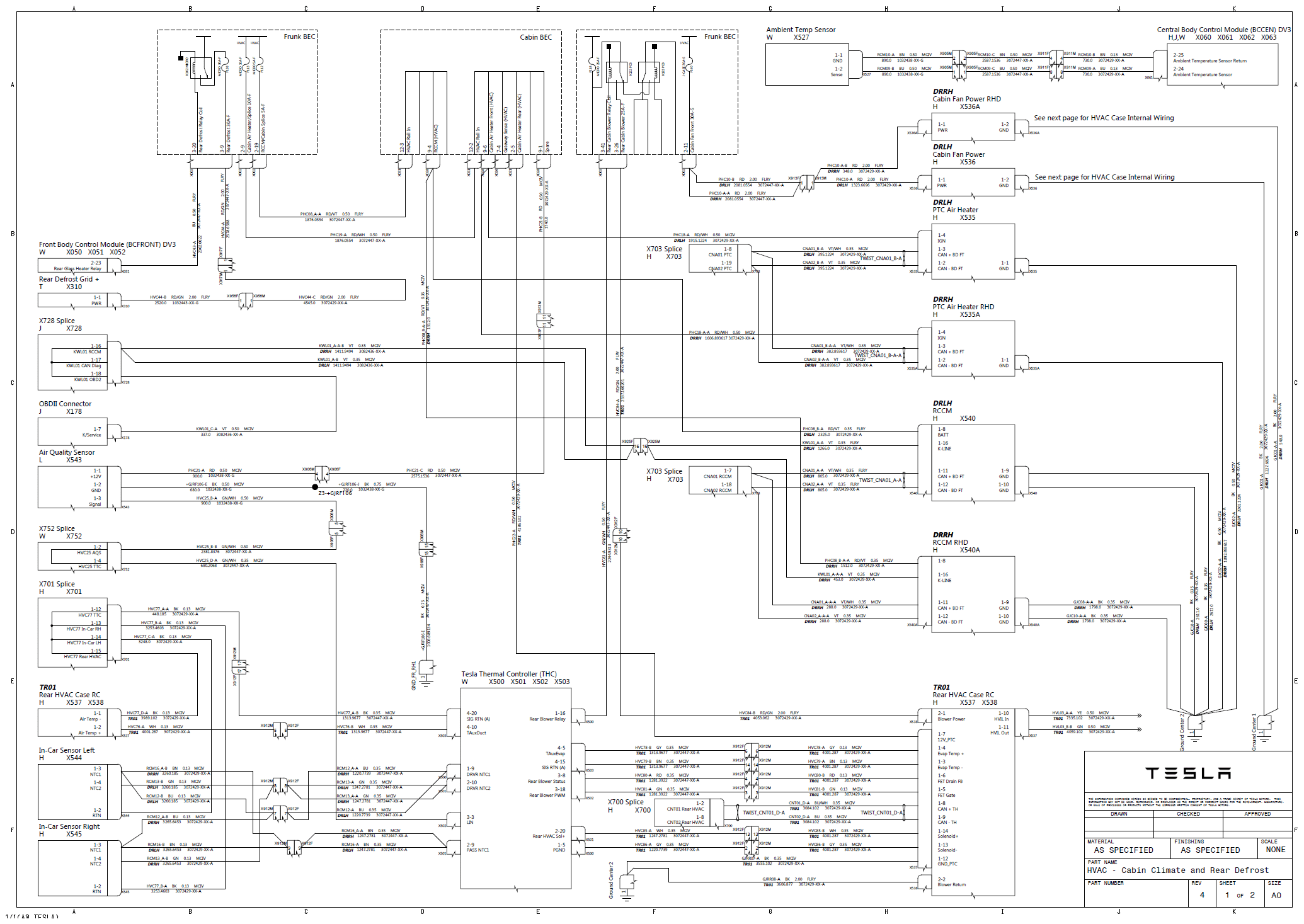

HVAC - Cabin Climate And Rear Defrost - Wiring Diagram [3/5/2018 - 4/24/2019]

G15292779

Courtesy of TESLA, INC.
