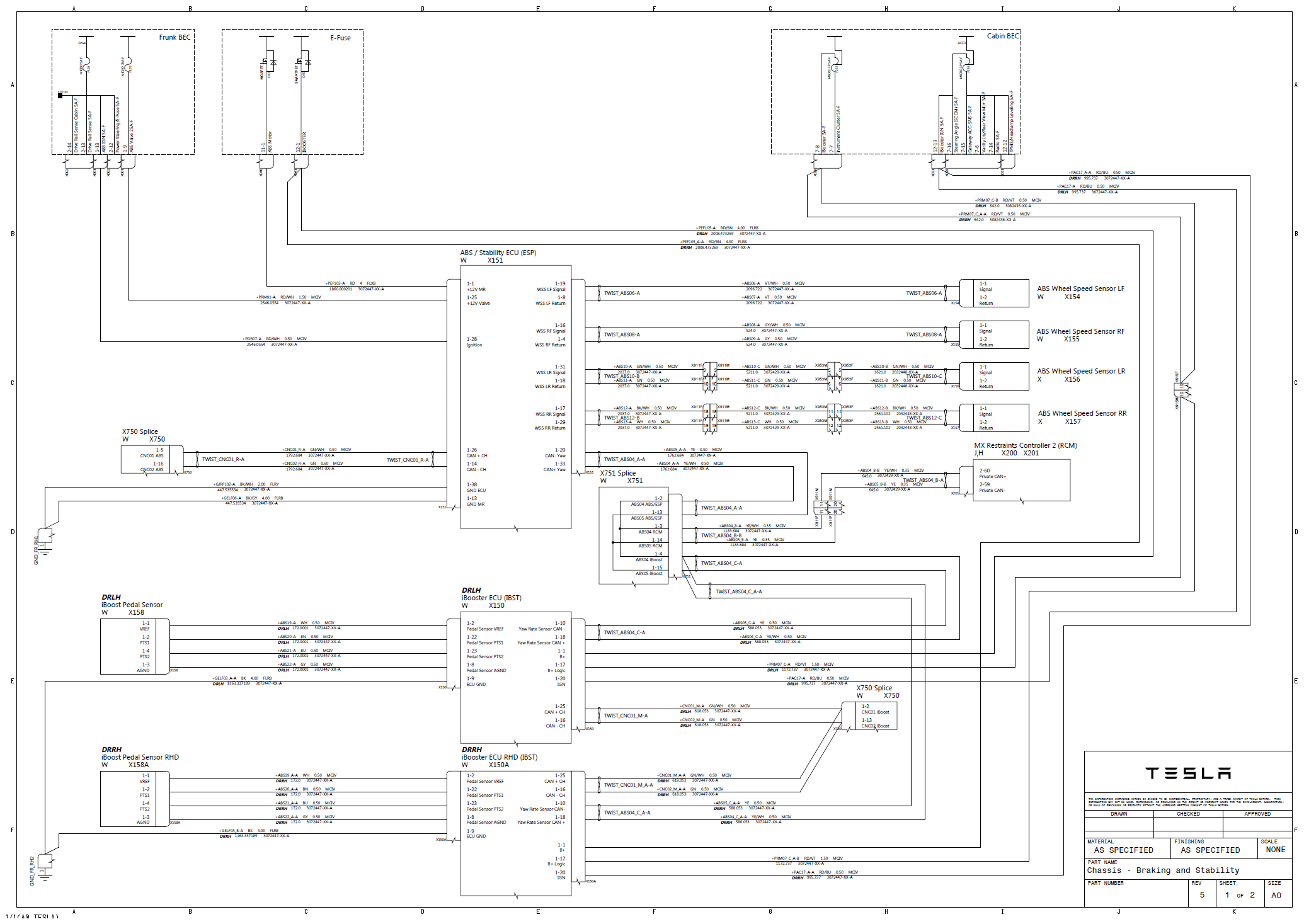

Chassis - (Braking And Stability) 1/2 - Braking And Stability - Wiring Diagram [3/5/2018 - 4/24/2019]
Chassis - (Braking And Stability) 1/2 - Braking And Stability - Wiring Diagram [3/5/2018 - 4/24/2019]
Courtesy of TESLA, INC.
Courtesy of TESLA, INC.
