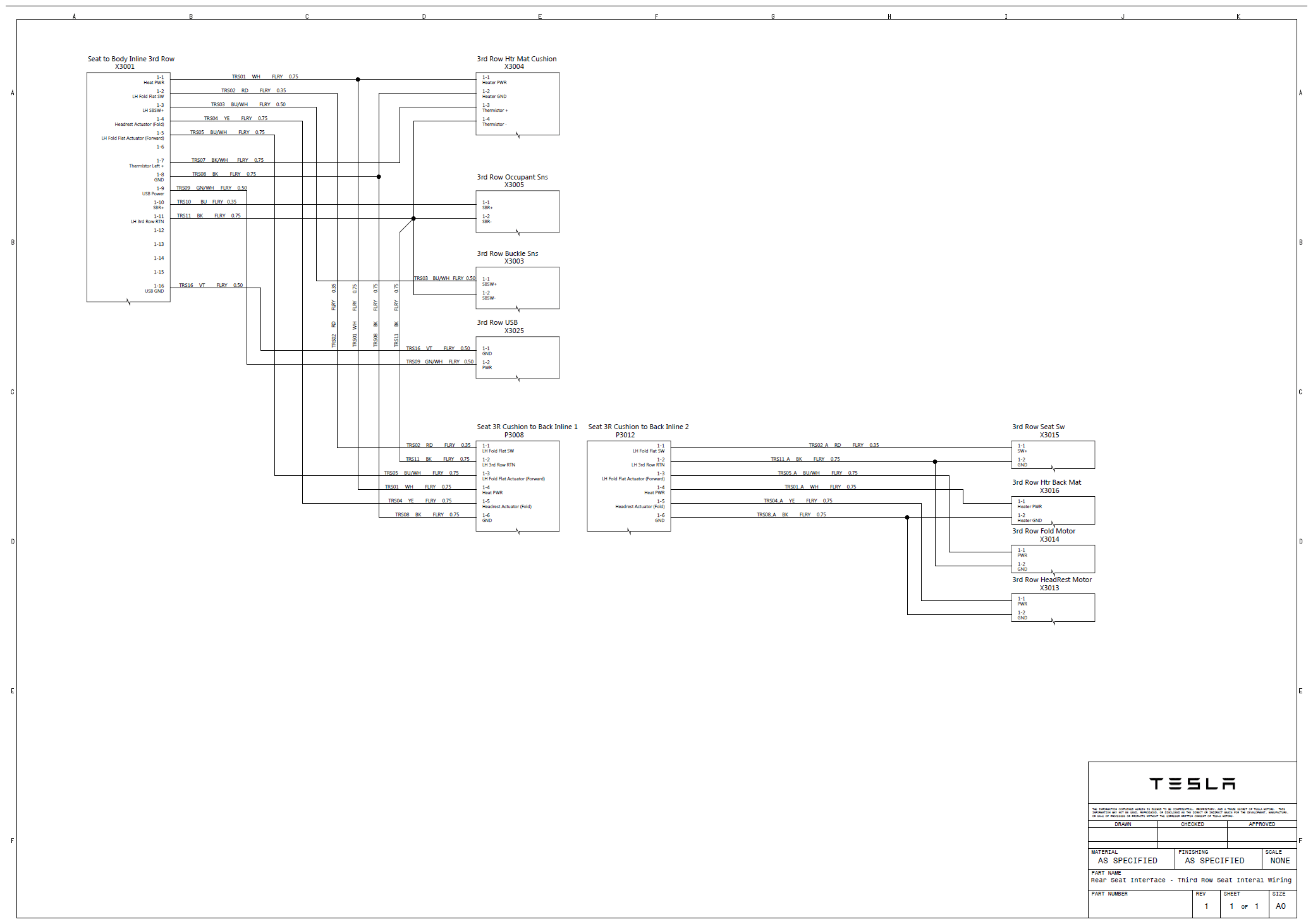

Rear Seat Internal Wiring - 3rd Row - Wiring Diagram [10/21/2019 -]

G15292878

Courtesy of TESLA, INC.
