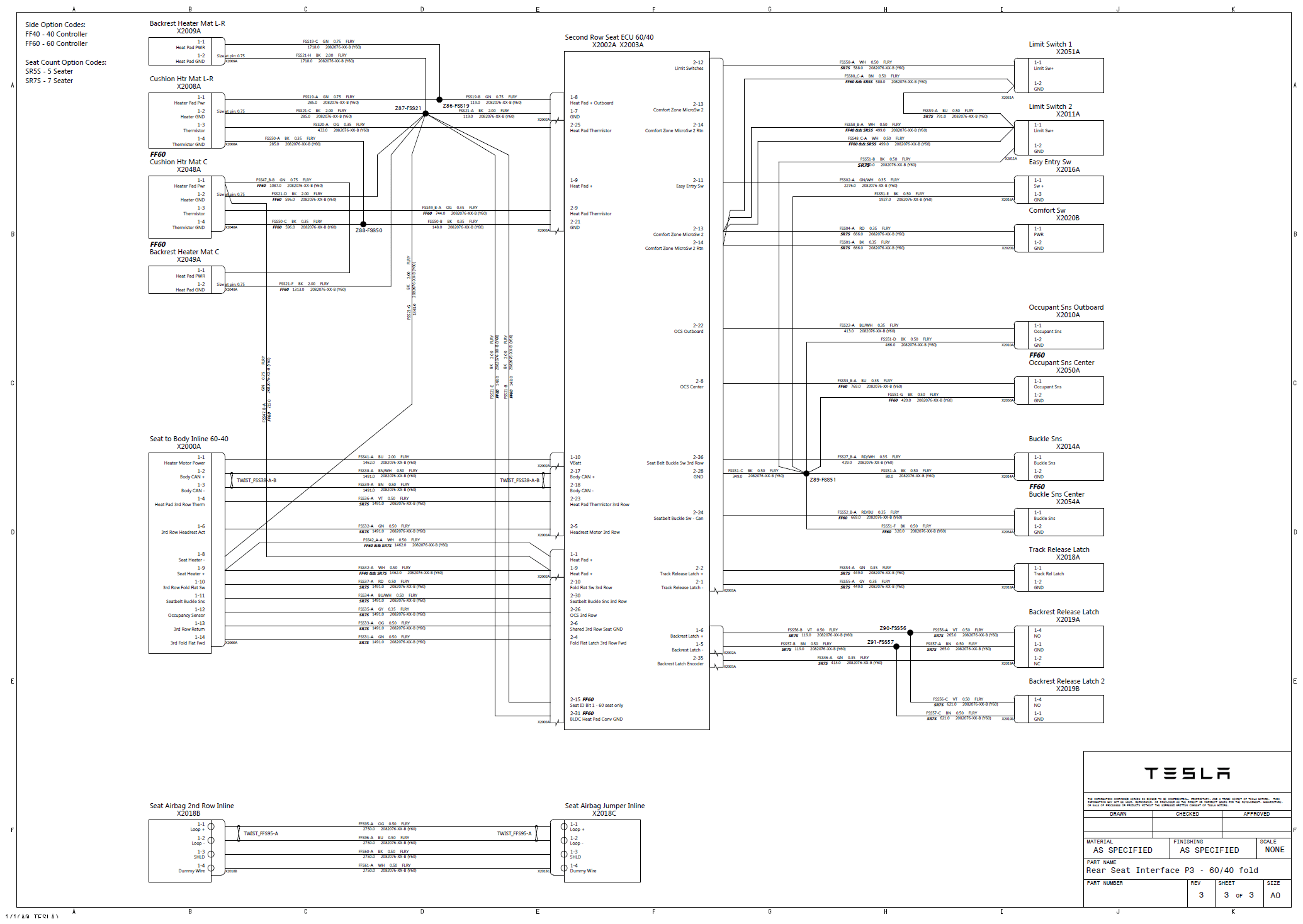

Rear Seat Internal Wiring - 2nd Row 60-40 - Wiring Diagram [10/21/2019 -]

G15292877

Courtesy of TESLA, INC.
