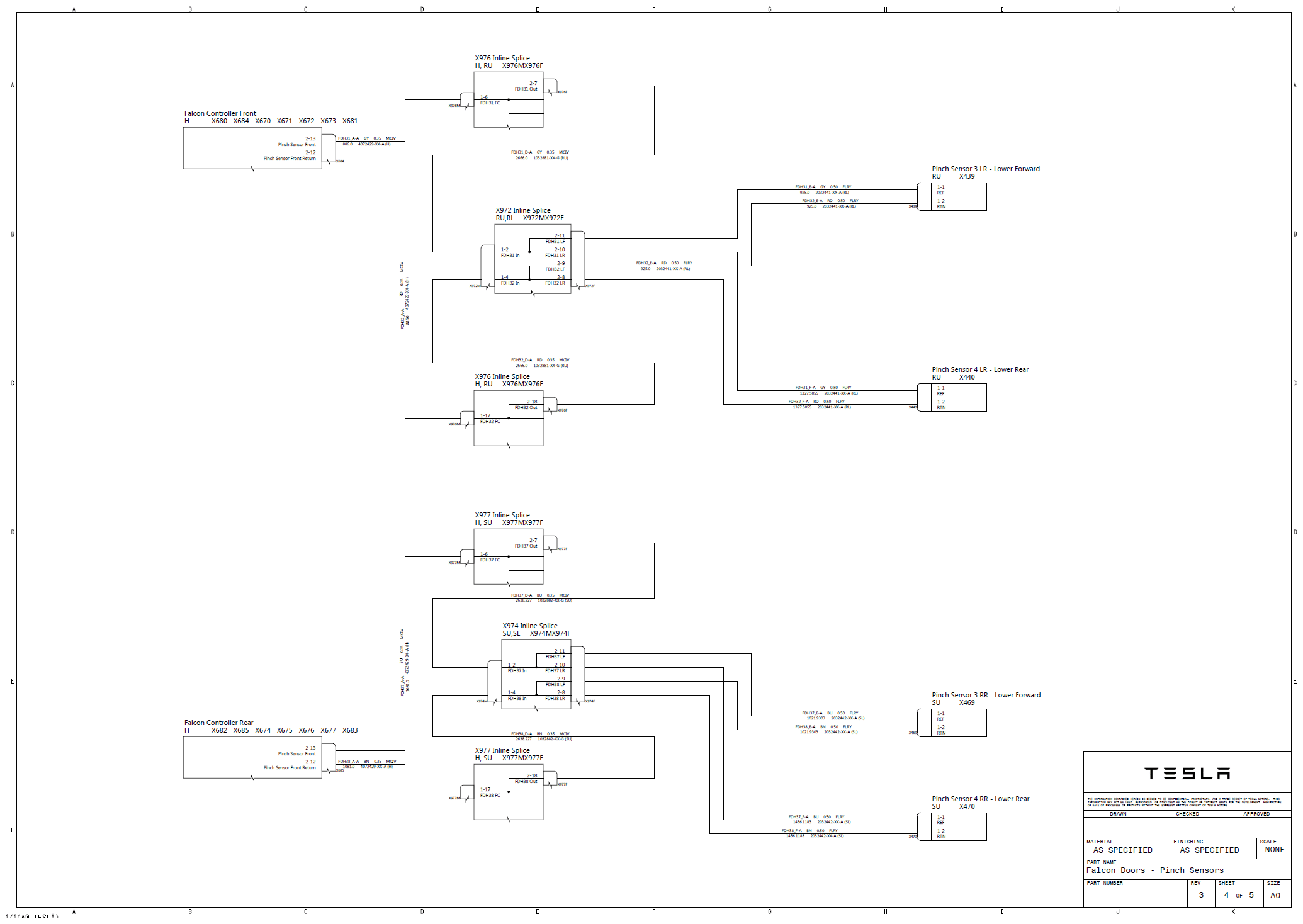

Falcon Doors 4/5 - Pinch Sensors - Wiring Diagram [10/21/2019 -]

G15292841

Courtesy of TESLA, INC.
