Wiper Blades - Pair - Remove And Replace: Removal

  1. Use the touchscreen to set the wipers to Service Mode.
  2. Lift the wiper arm.

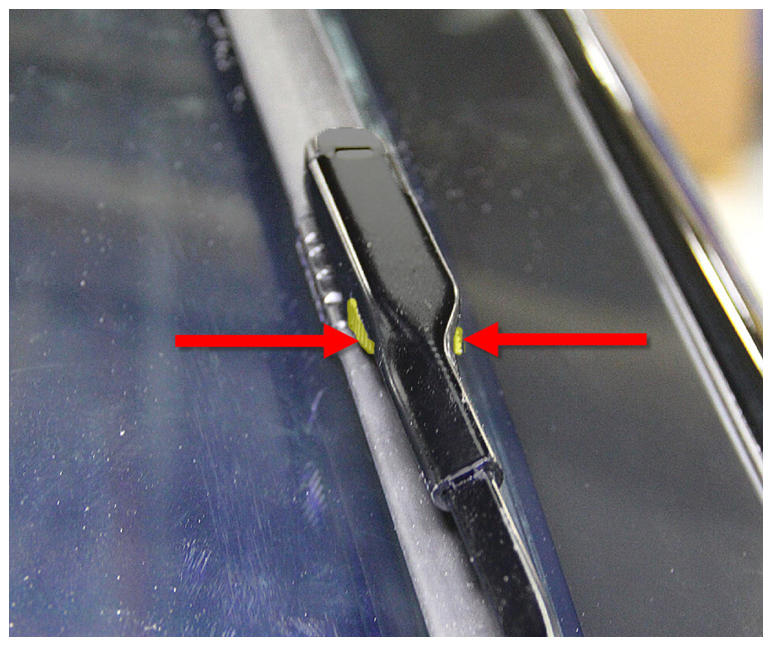

  3. Press the 2 tabs to release the wiper blade.
    G15203353Courtesy of TESLA, INC.
  4. Remove the wiper blade from the wiper arm.
  5. Place a cloth under the end of the wiper arm.
    CAUTION: The end of the wiper arm can scratch the glass. Make sure the wiper arm is set completely on the cloth.
  6. Disconnect the washer hose from the wiper blade.
    G15203354Courtesy of TESLA, INC.
  7. Repeat the procedure for the second wiper blade.
