Sensor - Level - Windshield Washer Reservoir - Remove And Replace: Removal

  1. Remove the front LH wheel arch liner Wheel Arch Liner - Front - LH (Remove And Replace) .
  2. Position a container to collect any spillage.

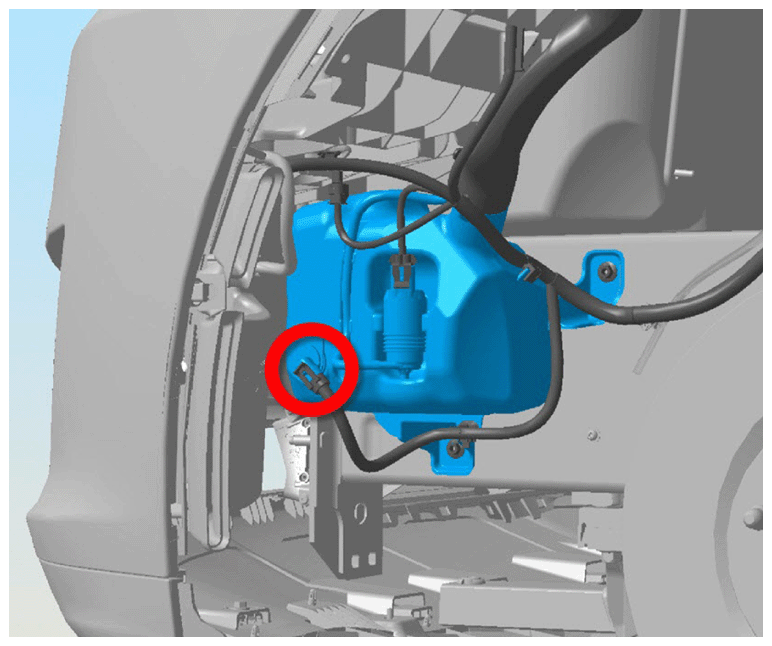

  3. Disconnect the level sensor electrical connector.
    G15203346Courtesy of TESLA, INC.
  4. Remove the level sensor from the washer reservoir.
    NOTE: Note installed position of components before removal.
