Pump - Windshield Washer Reservoir - Remove And Replace: Removal

  1. Remove the front LH wheel arch liner Wheel Arch Liner - Front - LH (Remove And Replace) .
  2. Position a container to collect any spillage.

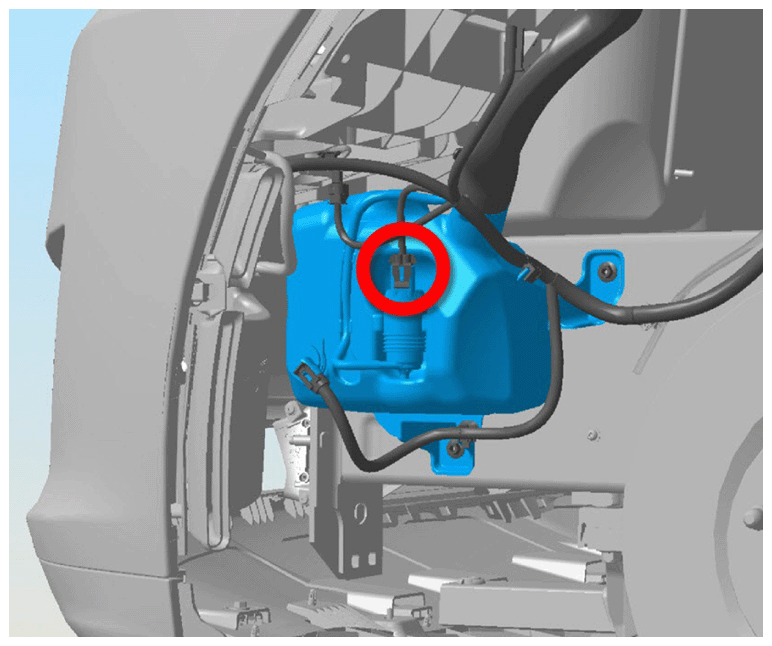

  3. Disconnect the washer pump electrical connector.
    G15203333Courtesy of TESLA, INC.
  4. Release the washer tube from the pump and drain any fluid from the reservoir into the container.
    NOTE: Place suitable absorbent material around the affected area to absorb any possible fluid spillage.
  5. Remove the pump from the washer reservoir.
