Camera - Rear View - Remove And Replace: Removal

WARNING: Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls  > Service  > Camera Calibration  > Clear Calibration  .
  1. Remove the middle liftgate trim Trim - Liftgate - Middle (Remove And Replace) .
  2. Remove the liftgate applique Applique - Liftgate (Remove And Replace) .

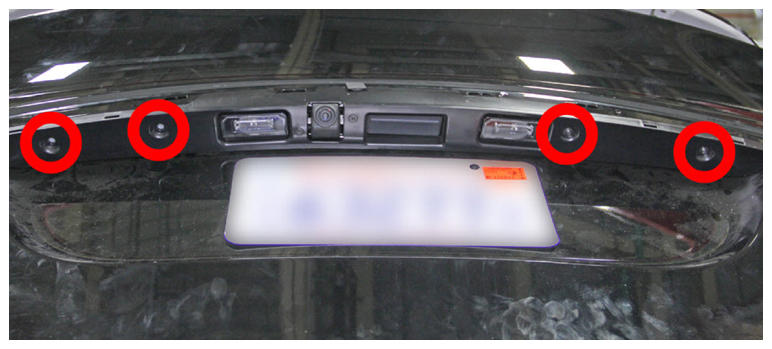

  3. Remove the screws (x4) that secure the liftgate applique bracket (torque 4 N.m).
    G15203074Courtesy of TESLA, INC.

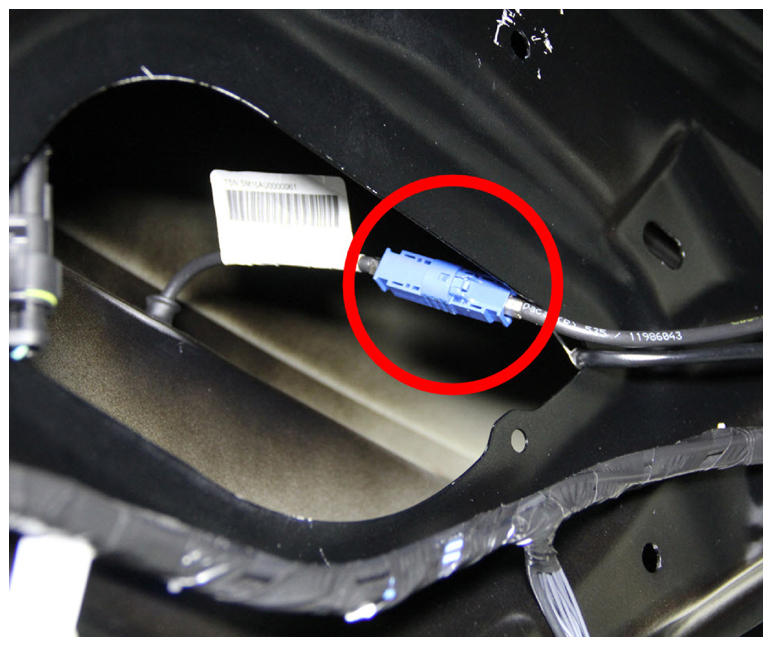

  4. Reach inside the LH side of the liftgate and disconnect the backup camera harness.
    G15203075Courtesy of TESLA, INC.
    NOTE: At this point in the procedure, the camera is still attached to the applique bracket.
  5. Remove the liftgate applique bracket from the vehicle.

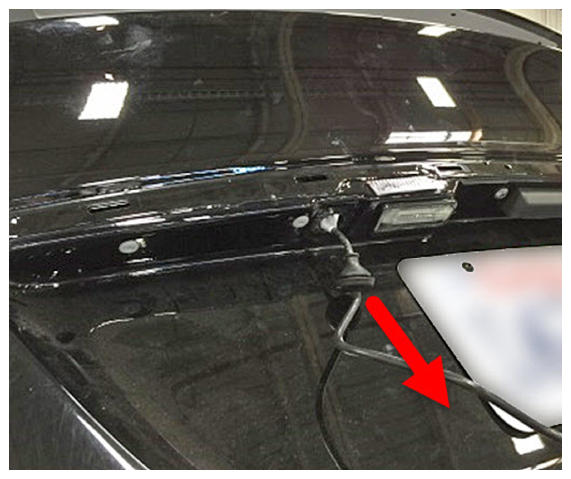

  6. Pull the camera harness through the opening in the liftgate body.
    G15203076Courtesy of TESLA, INC.

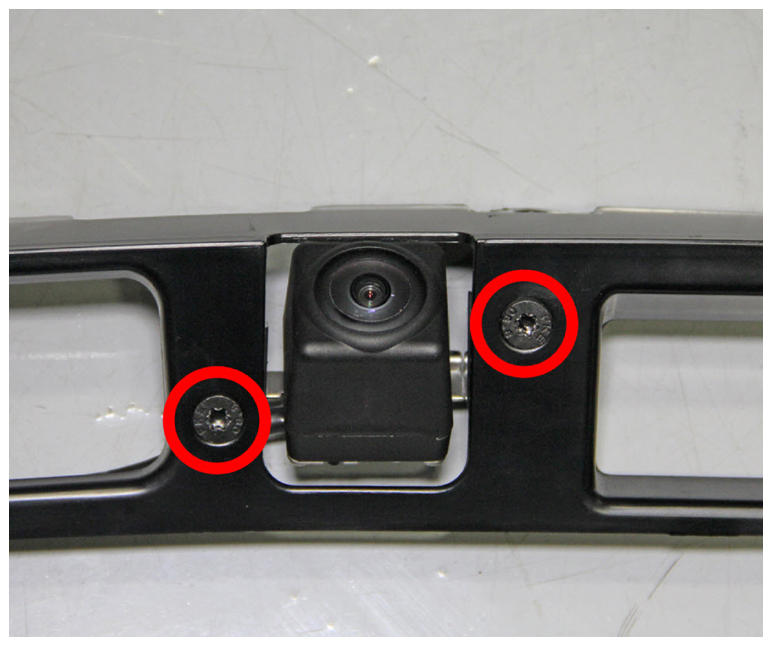

  7. Release the screws (x2) that secure the camera to the liftgate applique bracket (torque 2.8 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15203077Courtesy of TESLA, INC.
