Bracket - Radar - Front (DAS 2.5) - Remove And Replace: Removal

  1. Perform Wheel Alignment Check (with Air Suspension).
    NOTE: FRT per correction code- 31002100.
  2. Using MCU, set suspension to very high and press, open hood.
  3. Exit vehicle and open hood.

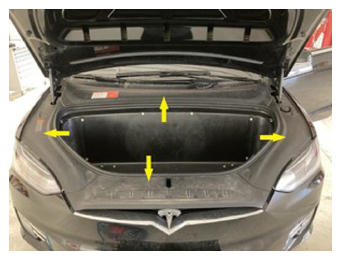

  4. Remove underhood aprons.
    NOTE: 4x aprons.
    G15202952Courtesy of TESLA, INC.

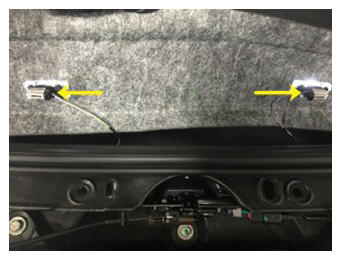

  5. Remove frunk carpet.
    NOTE: 2x connectors.
    G15202953Courtesy of TESLA, INC.

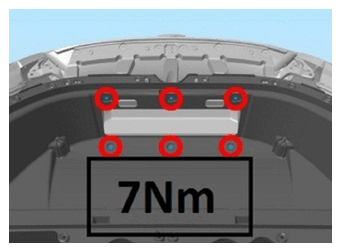

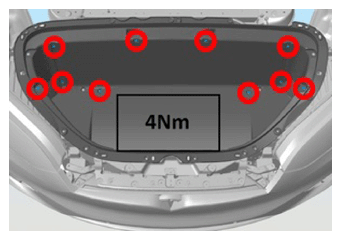

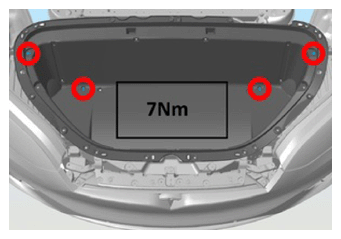

  6. Remove underhood storage unit.
    NOTE: 10x bolts, 10 mm, 4 N.m, 10x bolts, 10 mm, 7 N.m.
    G15202954Courtesy of TESLA, INC.
    G15202955Courtesy of TESLA, INC.
    G15202956Courtesy of TESLA, INC.

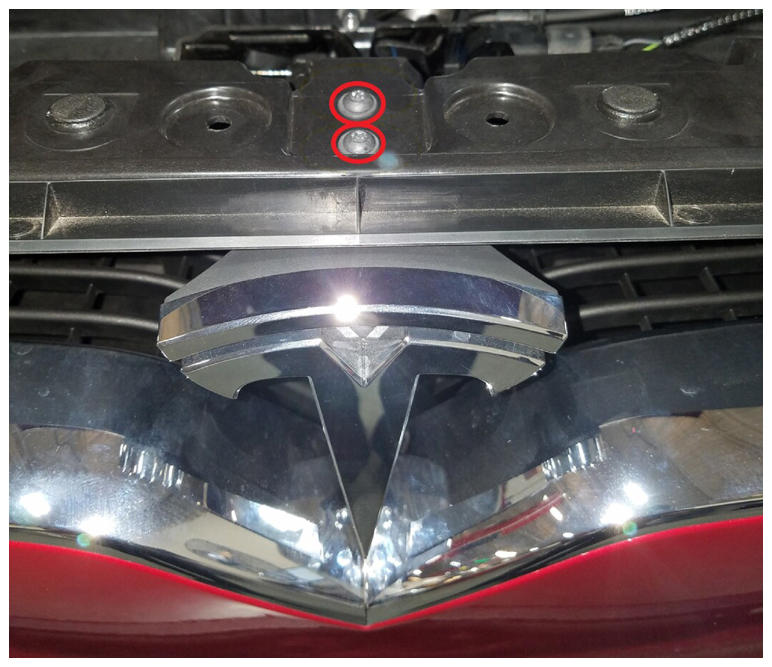

  7. Remove the front T badge.
    NOTE: 2x bolts, T25, 5 N.m, Done to prevent scratching of the front fascia chrome trim.
    G15202957Courtesy of TESLA, INC.

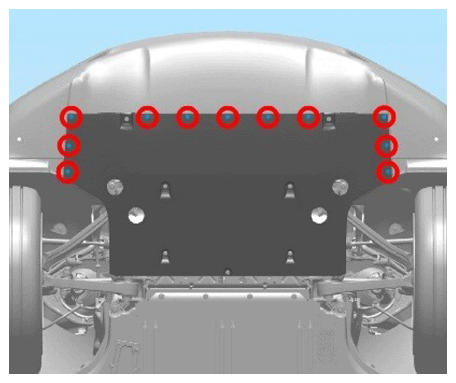

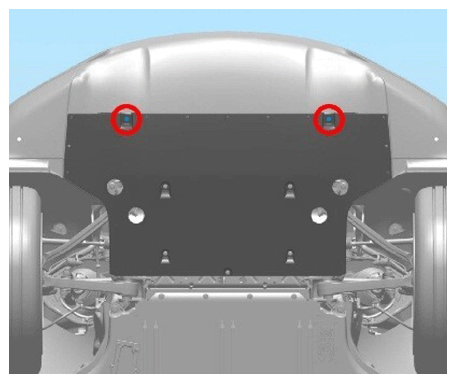

  8. Release fascia to lower front aero shield.
    NOTE: 11x push clips, 2x bolts, 10 mm, 3 N.m.
    G15202958Courtesy of TESLA, INC.
    G15202959Courtesy of TESLA, INC.

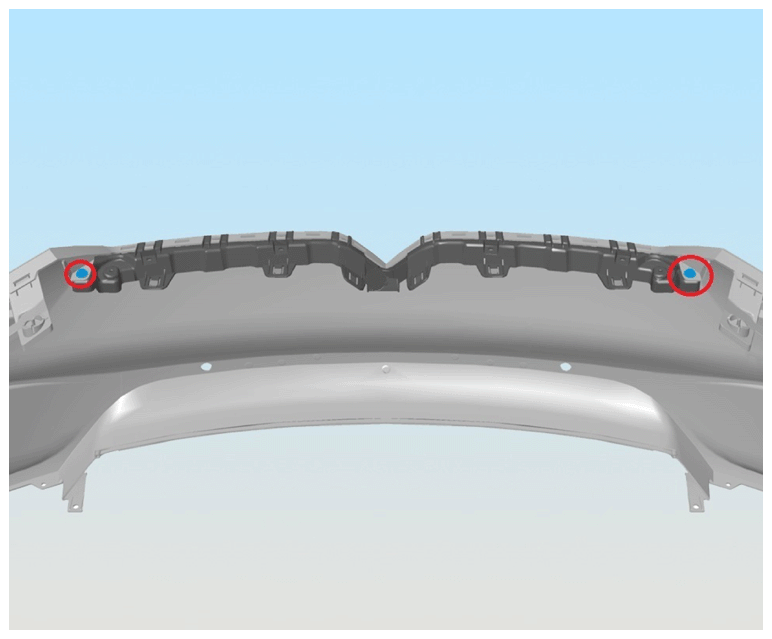

  9. Remove bolts securing fascia to upper grill.
    NOTE: 2x bolts, 10 mm.
    G15202960Courtesy of TESLA, INC.
  10. Turn wheel fully to the right, to gain access to LF arch liner clips.
  11. Remove forward side of the LF arch liner to gain access to garnish fasteners.
    NOTE: 4x push clips.
    G15202961Courtesy of TESLA, INC.

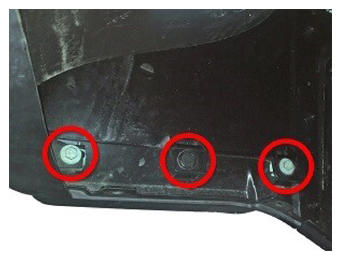

  12. Release the LH lower front of fender garnish.
    NOTE: 1x push clip, 2x bolts, 10 mm, 1.5 N.m.
    G15202962Courtesy of TESLA, INC.

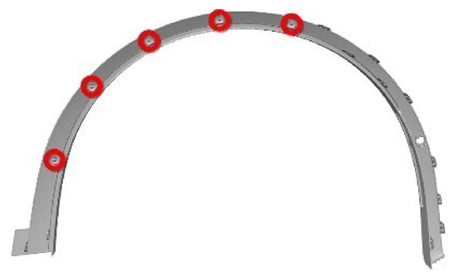

  13. Starting from the rear, carefully pull the LH fender garnish away from the vehicle and disconnect ultrasonic sensor.
    NOTE: 5x heart flex clips, 1x connector, take care not to damage garnish ultra sonic sensor.
    G15202963Courtesy of TESLA, INC.
    G15202964Courtesy of TESLA, INC.

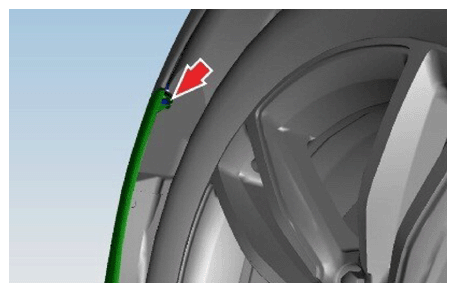

  14. Remove the screw that secures fascia to LF fender.
    NOTE: 1x screw, T25, 1.5 N.m.
    G15202965Courtesy of TESLA, INC.

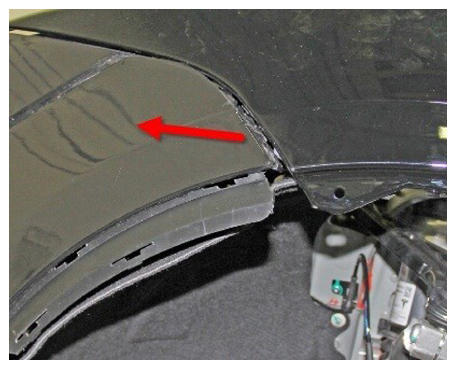

  15. Pull LH fascia away from fender.
    G15202966Courtesy of TESLA, INC.
  16. Turn wheel fully to the left, to gain access to RF arch liner clips.

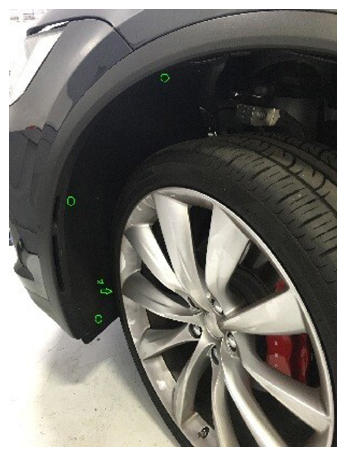

  17. Remove forward side of RF arch liner to access garnish bolts.
    NOTE: 4x push clips.
    G15202967Courtesy of TESLA, INC.
  18. Release the RH lower front of fender garnish.
    NOTE: 1x push clips, 2x bolt, 10 mm, 1.5 N.m.
    G15202968Courtesy of TESLA, INC.

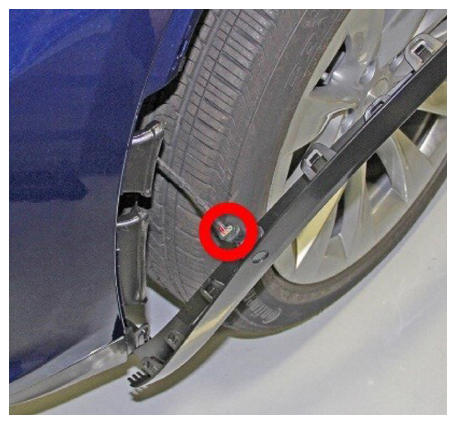

  19. Starting from the rear, carefully pull the RH fender garnish away from the vehicle and disconnect ultrasonic sensor.
    NOTE: 5x heart flex clips, 1x connector, take care not to damage garnish ultra sonic sensor.
    G15202969Courtesy of TESLA, INC.
    G15202970Courtesy of TESLA, INC.

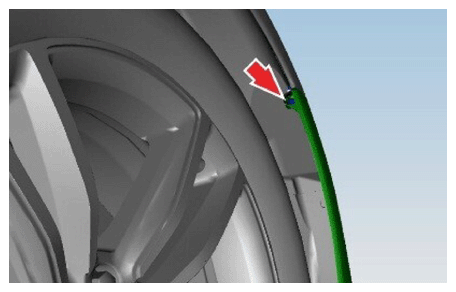

  20. Remove the screw that secures fascia to RF fender.
    NOTE: 1x screw, T25, 1.5 N.m.
    G15202971Courtesy of TESLA, INC.
  21. Pull RH fascia away from fender.
  22. Starting on the LH side of the vehicle, release the clips that secure the front fascia by pulling the fascia up and away from the vehicle.
    NOTE: 1x connector, recommend assistance to remove fascia.

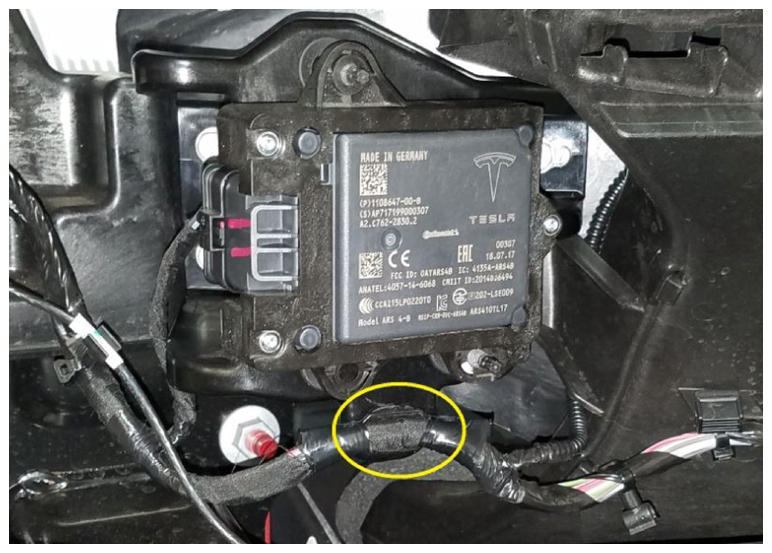

  23. Release the harness clip from the lower edge of the radar bracket.
    NOTE: 1x clip.
    G15202972Courtesy of TESLA, INC.

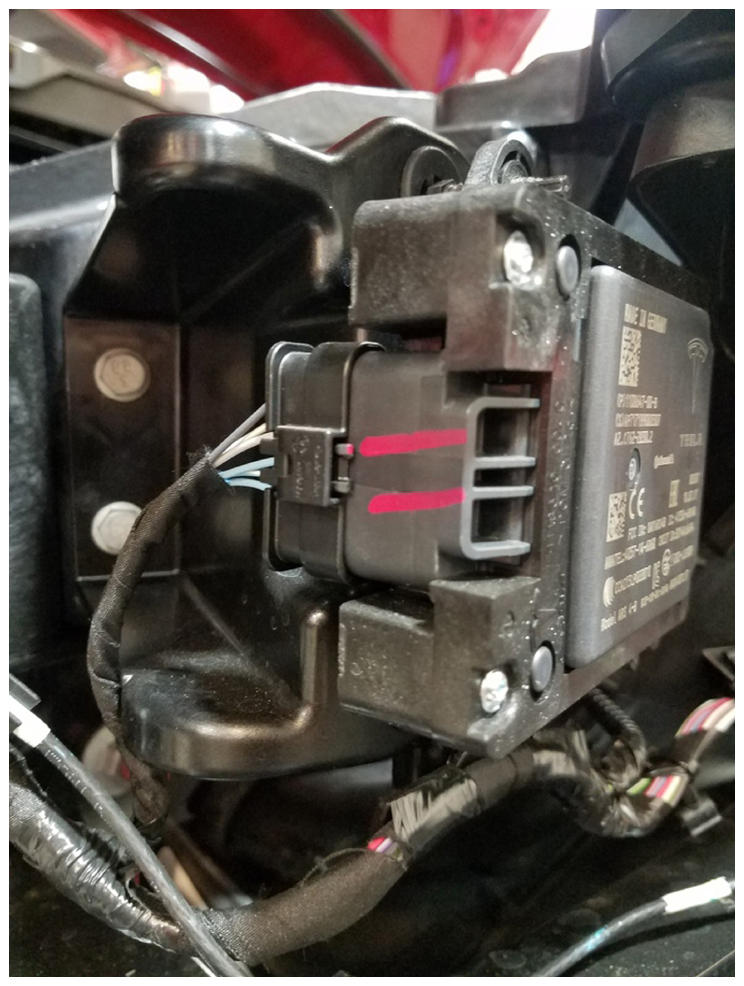

  24. Disconnect the front radar.
    NOTE: 1x connector.
    G15202973Courtesy of TESLA, INC.

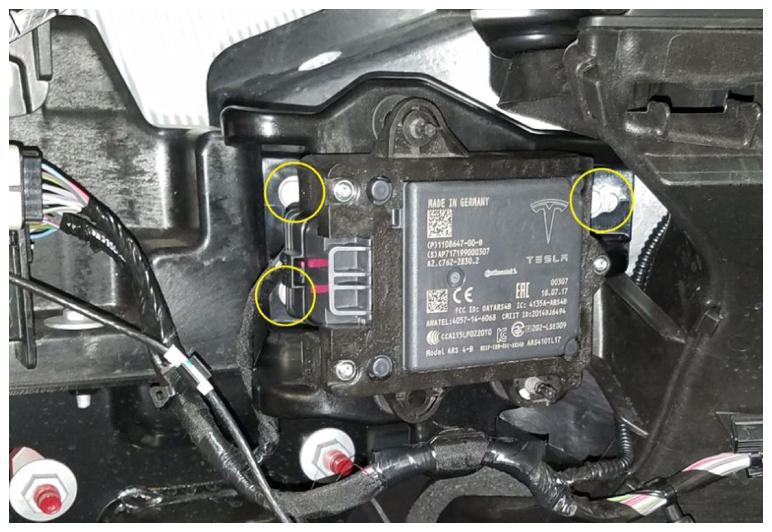

  25. Remove the radar bracket assembly.
    NOTE: 3x bolts, 10 mm, 6.5 N.m.
    G15202974Courtesy of TESLA, INC.

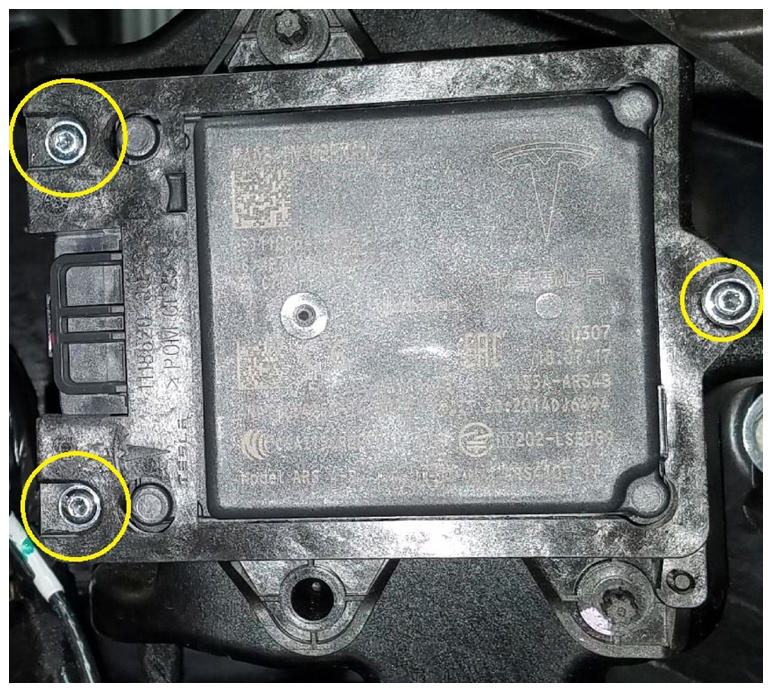

  26. Remove radar housing front cover.
    NOTE: 3x bolts, T10, 0.8 N.m.
    G15202975Courtesy of TESLA, INC.
  27. Remove radar from housing.
