Pyrotechnic Battery Disconnect - Remove And Replace: Removal

  1. Disconnect 12V power. See DISCONNECT 12V POWER .

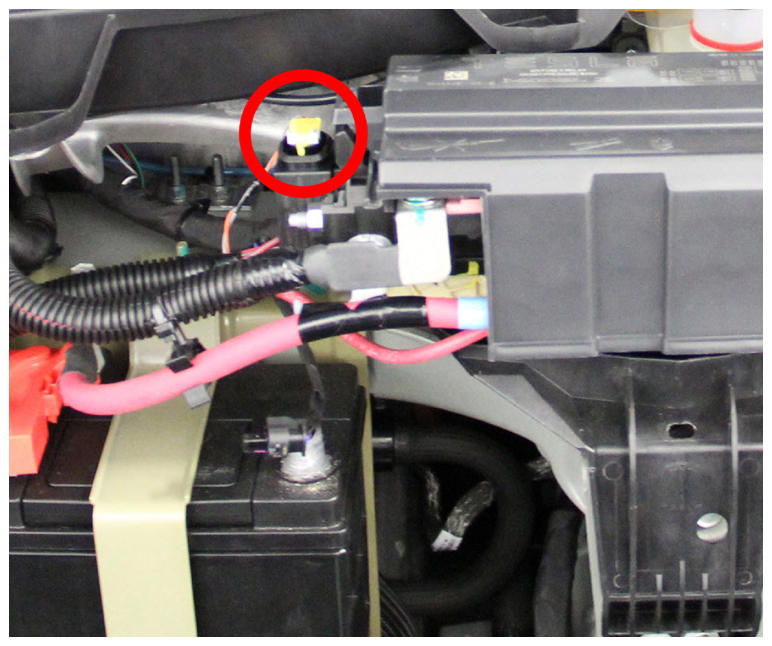

  2. Disconnect the pyrotechnic battery disconnect harness.
    G15203377Courtesy of TESLA, INC.

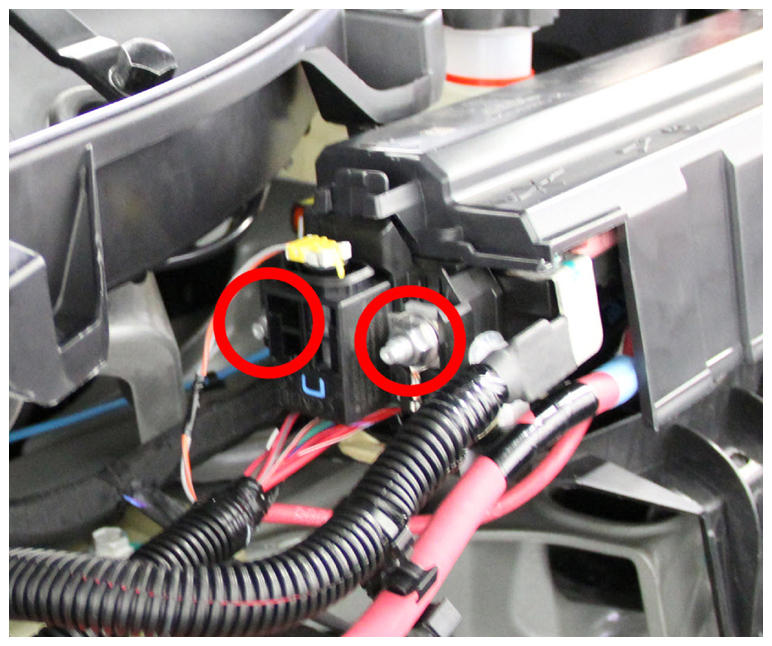

  3. Remove the nuts that secure the pyrotechnic battery disconnect (torque 15 N.m).
    G15203378Courtesy of TESLA, INC.
  4. Remove the pyrotechnic battery disconnect from the vehicle.
