Antenna - Passive Entry - Rear - Remove And Replace: Removal

  1. Remove the rear trunk wall trim Trim - Rear Trunk - Rear Wall (Remove And Replace) .
  2. Disconnect 12V power DISCONNECT 12V POWER .

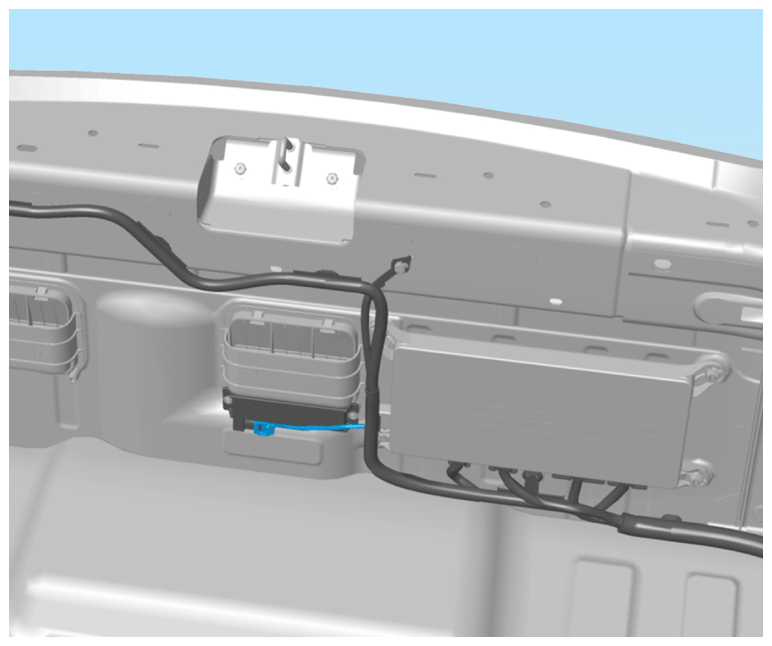

  3. Disconnect the electrical connector from the antenna.
    G15203322Courtesy of TESLA, INC.

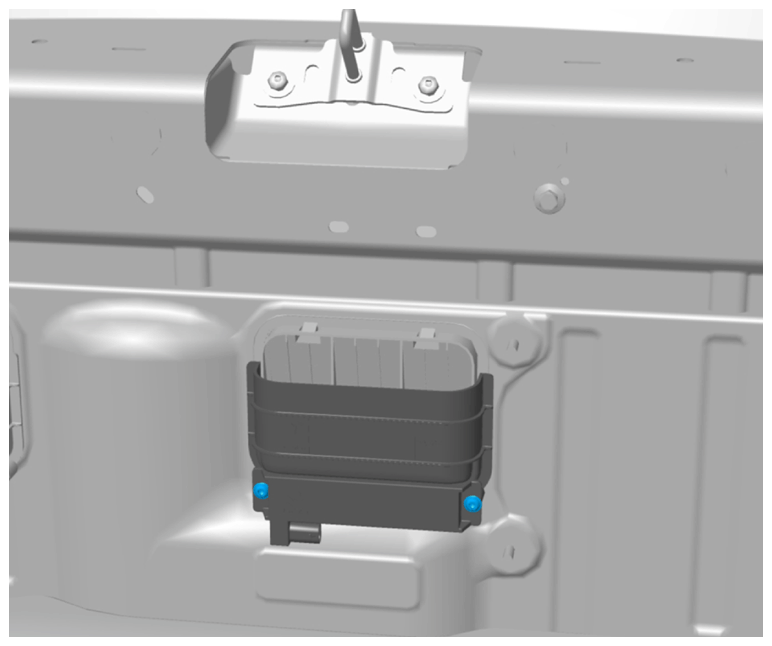

  4. Remove the screws (x2) that secure the antenna to the standoffs on the air extractor (torque 2 N.m).
    NOTE: It is not necessary to completely remove the LH screw; the hole is notched.
    G15203323Courtesy of TESLA, INC.
  5. Remove the antenna from the vehicle.
    G15203324Courtesy of TESLA, INC.
