Antenna - Passive Entry - Center Console - Remove And Replace: Removal

  1. Remove the center console from the vehicle Trim - Center Console - Side - LH (Remove And Replace) .

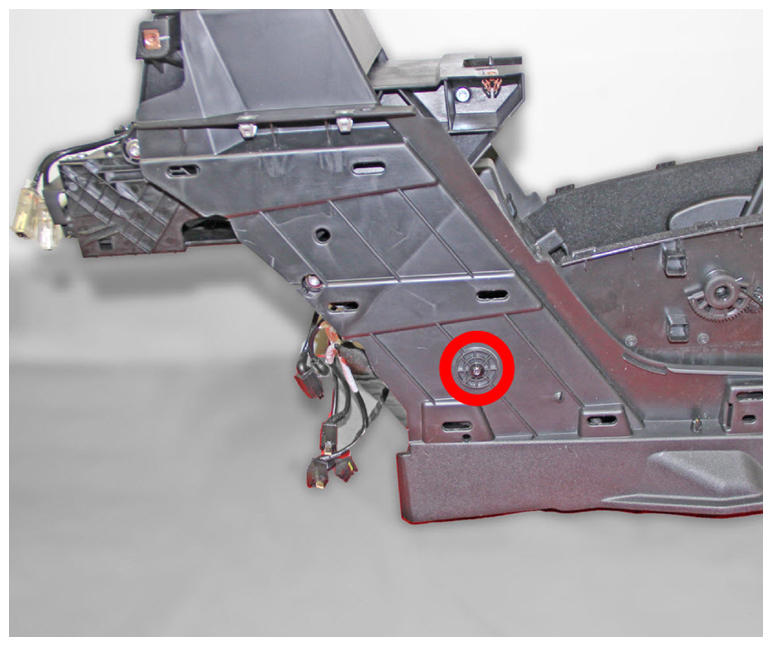

  2. On each side of the console, release the fastener that secures the console bracket to the console (torque 2.5 N.m).
    G15203310Courtesy of TESLA, INC.
  3. Lift the console bracket out of the console.
  4. Disconnect the harness from the antenna.

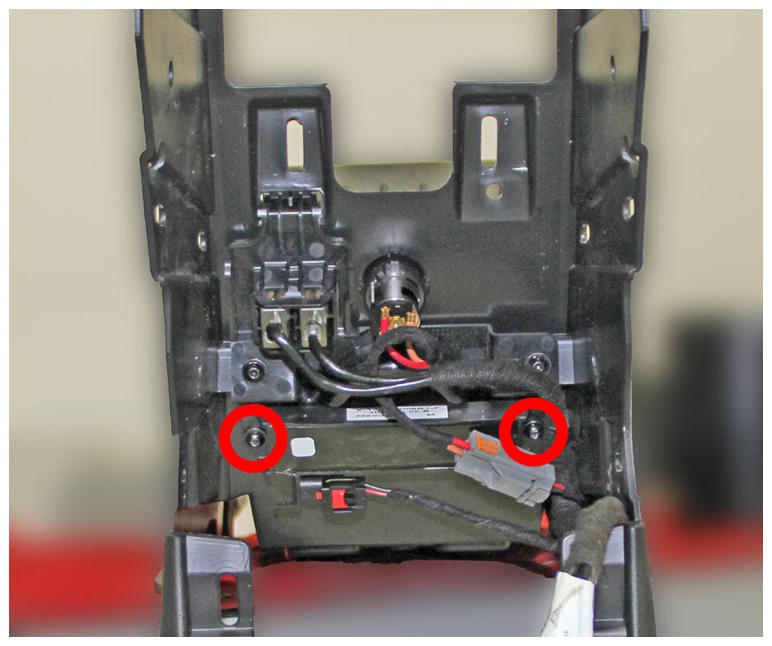

  5. Release the screws that secure the antenna to the console (torque 1 N.m).
    G15203311Courtesy of TESLA, INC.
