Switch - Glove Box - Remove And Replace: Removal

  1. Remove the MCU Media Control Unit (Remove And Install) .

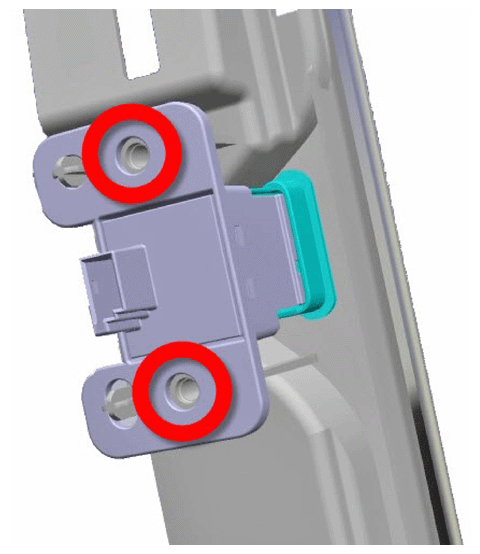

  2. Remove the screws (x2) that secure the glove box switch to the touchscreen surround (1 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15203137Courtesy of TESLA, INC.

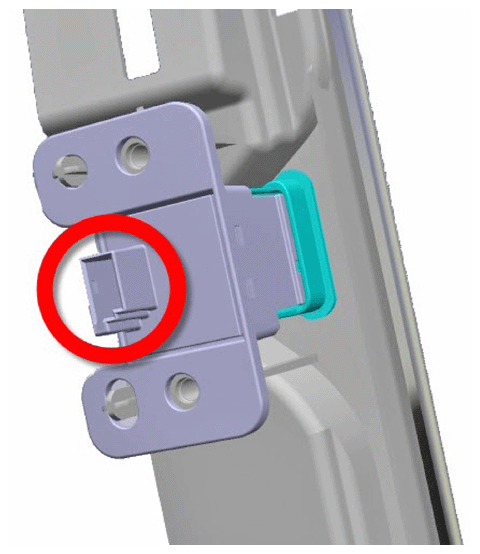

  3. Disconnect the electrical connector from the glove box switch.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15203138Courtesy of TESLA, INC.
  4. Remove the glove box switch from the touchscreen surround.
