Power Socket 12V - Center Console - Remove And Replace: Removal

  1. Remove the center console armrest base Base - Armrest - Center Console (Remove And Install) .

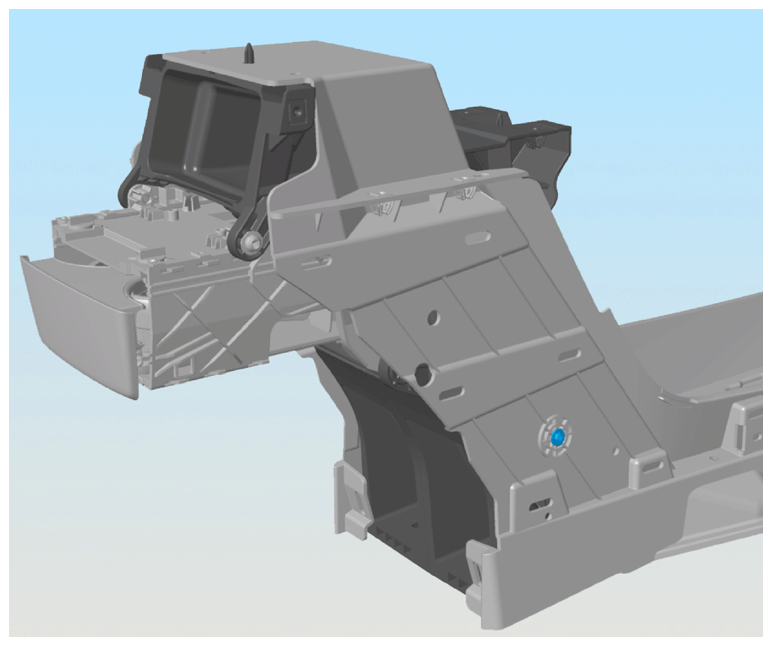

  2. Release the fasteners that secure the center console bracket to the carrier. Remove the bracket from the carrier.
    G15203135Courtesy of TESLA, INC.

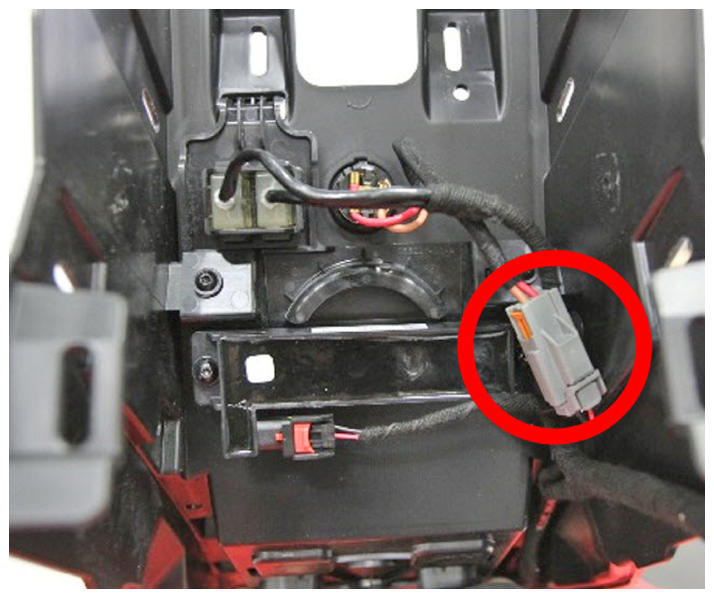

  3. Disconnect the electrical connector for the 12V power socket.
    G15203136Courtesy of TESLA, INC.
  4. Remove the 12V power socket from the center console bracket.
