Task Light - Footwell Cover - LH - Remove & Replace: Removal

  1. Open the LH front door and lower the LH front window.

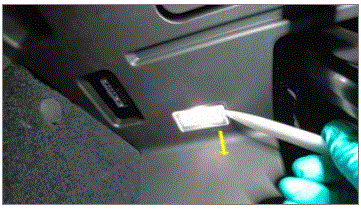

  2. Use a trim tool to release the task light from the footwell cover.
    G00644101Courtesy of TESLA, INC.
  3. Disconnect the electrical harness from the task light.
  4. Remove the task light from the vehicle.
