Puddle Light - Front Seat - LH - Remove And Replace: Removal

  1. Move the front seat fully forward.

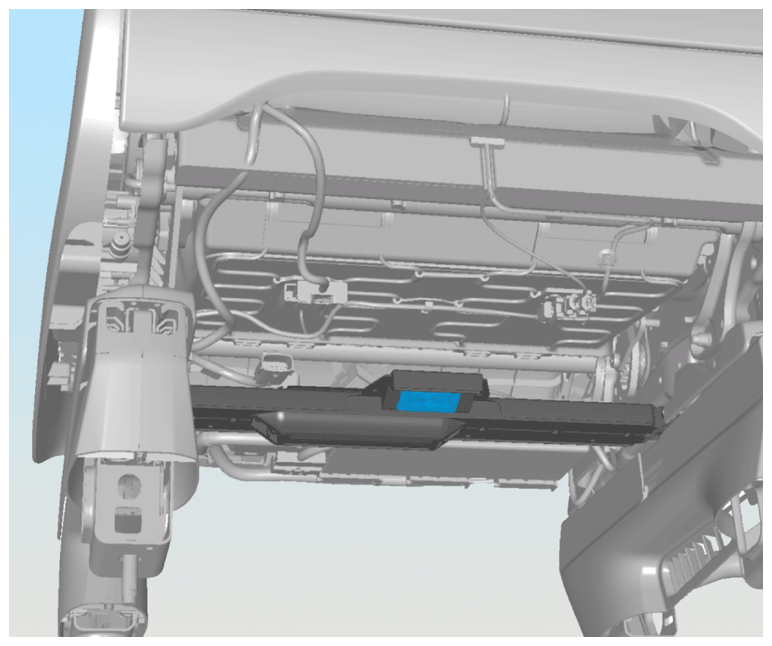

  2. Use a pick to release the puddle light from the seat motor bracket, but do not fully remove the puddle light at this time.
    G15203154Courtesy of TESLA, INC.
  3. Disconnect the electrical harness from the puddle light.
  4. Remove the puddle light from the vehicle.
