Camera - Forward Facing (Pitch Verification): Adjust
NOTE:
Do not sit in or lean on the vehicle during pre-calibration.
- In Toolbox 3, go to Dashboards > DAS Tools > Display Das Images > Pre-Calibration , and follow the on screen instructions to perform the pre-calibration.
- In the "Main" and "Narrow" camera views, determine if the top edge of the tape is between the positive 1.7 and negative 2 green degree lines.NOTE: The "positive" degree lines are below the main horizontal axis. The "negative" degree lines are above the main horizontal axis.

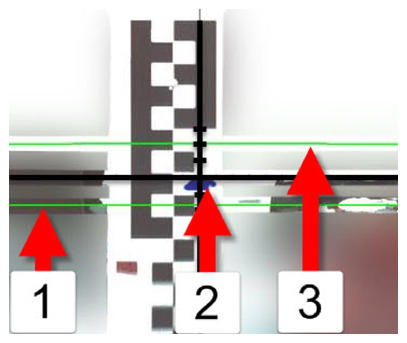

1 Positive 1.7 green degree line 2 Tape 3 Negative 2 green degree line - If the top edge of the tape is not between the green degree lines, retrofit a triple camera rear view mirror mount plate with integrated pitch adjustment, see TRIPLE CAMERA PITCH ADJUSTMENT - FORWARD FACING - 2ND GENERATION AUTOPILOT (RETROFIT) .
- If the top edge of the tape is between the green degree lines, continue to the next step.
- Inform the customer that manual driving is now required to allow the camera to self-calibrate.NOTE: Self-calibration can take up to 100 miles (160 km) of manual driving, depending upon the road type and condition. Until self-calibration is complete, the message "Autopilot Features Currently Unavailable: Manual Driving Required While Camera Is Calibrating" is displayed if an attempt is made to engage an Autopilot feature.
