Taillight Assembly - LH - Remove And Replace: Removal

  1. Remove the LH taillight assembly TAILLIGHT ASSEMBLY - LH (REMOVE AND INSTALL) .

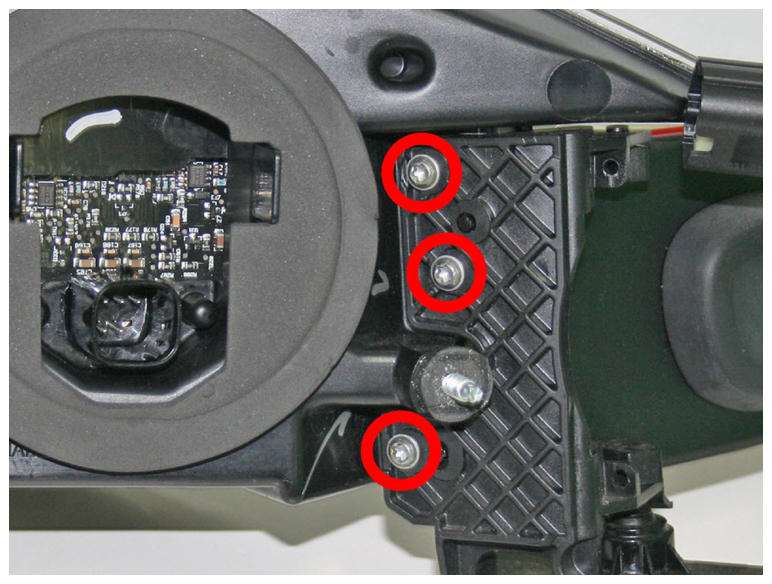

  2. Remove the screws (x3) that secure the charge port door to the taillight assembly.
    NOTE: The charge port door and motor are removed as an assembly.
    G15203302Courtesy of TESLA, INC.

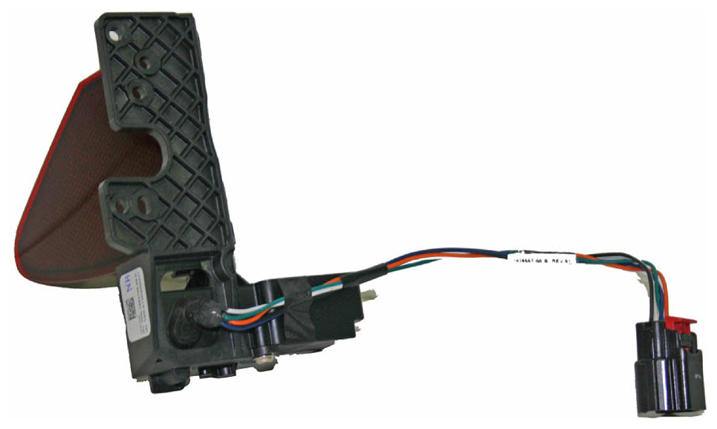

  3. Remove and retain the charge port door.
    G15203303Courtesy of TESLA, INC.
