Taillight Assembly - LH - Remove And Install: Removal
- Remove the charge port assembly. See Charge Port (Remove And Replace)
for SAE or ECE Charge Port Assembly - Remove And Replace
for ECE..
- Pull the NVH padding away from the taillight to expose the fasteners and electrical connectors.

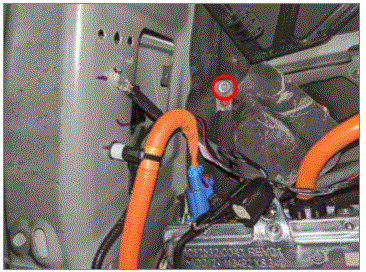

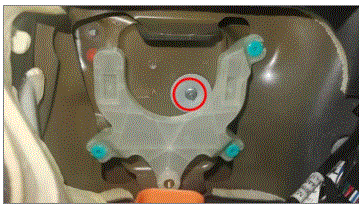

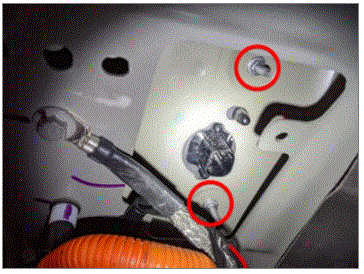

- Remove the nuts (x3) and bolt that secure the LH taillight to the body (torque 2.5 Nm).
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

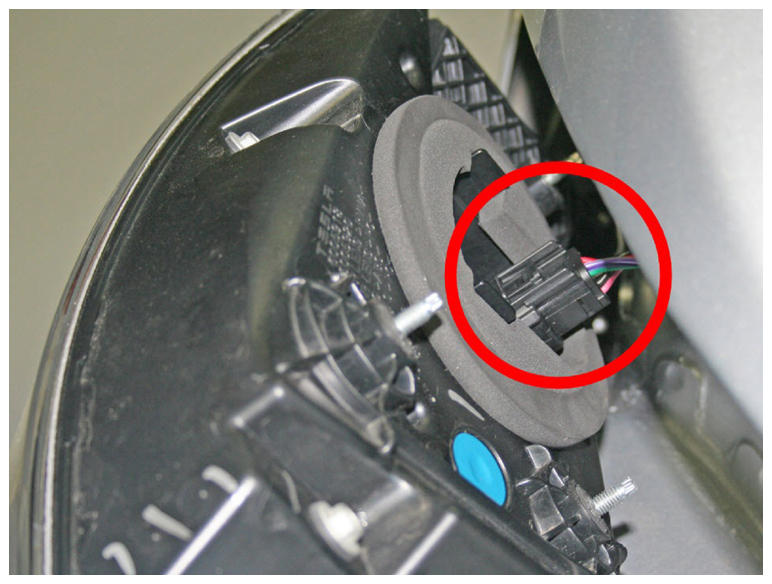

- Working from outside the vehicle, rotate the taillight towards the front of the vehicle expose the taillight harness. Disconnect this harness and remove the taillight.
 Courtesy of TESLA, INC.
|
- Place the taillight on a soft, clean surface.
