Switch - Hazard Warning - Remove And Replace: Removal

  1. Remove the MCU Media Control Unit (Remove And Install) .

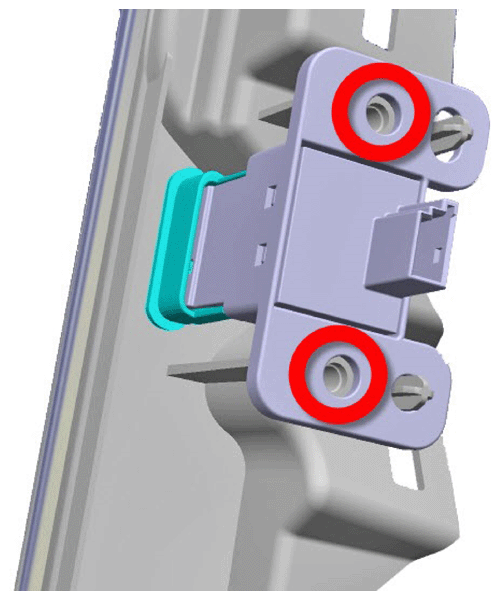

  2. Remove the screws (x2) that secure the hazard warning switch to the touchscreen surround (torque 1 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15203297Courtesy of TESLA, INC.

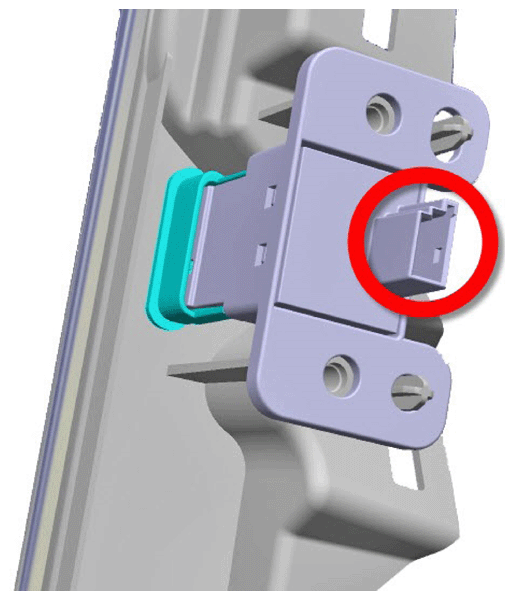

  3. Disconnect the electrical connector from the hazard warning switch.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15203298Courtesy of TESLA, INC.
  4. Remove the hazard warning switch from the touchscreen surround.
