Light - Fog - Front - LH - Remove And Replace: Removal

  1. Remove the LH front wheel, see WHEEL (REMOVE AND INSTALL) .
    NOTE: Use a 2-pole lift or a floor jack with jack stand.

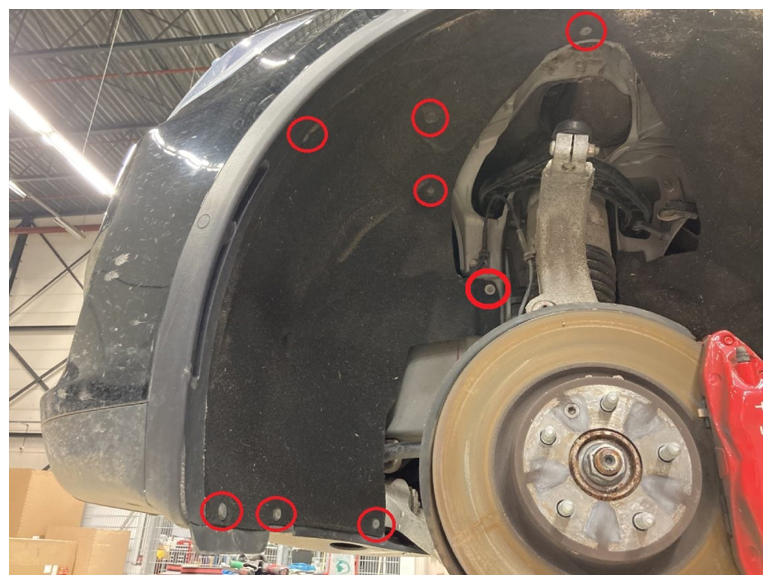

  2. Remove the clips (x7) and nut (torque 6 N.m) that attach the front portion of the wheel arch liner to the wheel arch, and then move the front part of the wheel liner towards the rear of the vehicle for access.
    G15203280Courtesy of TESLA, INC.

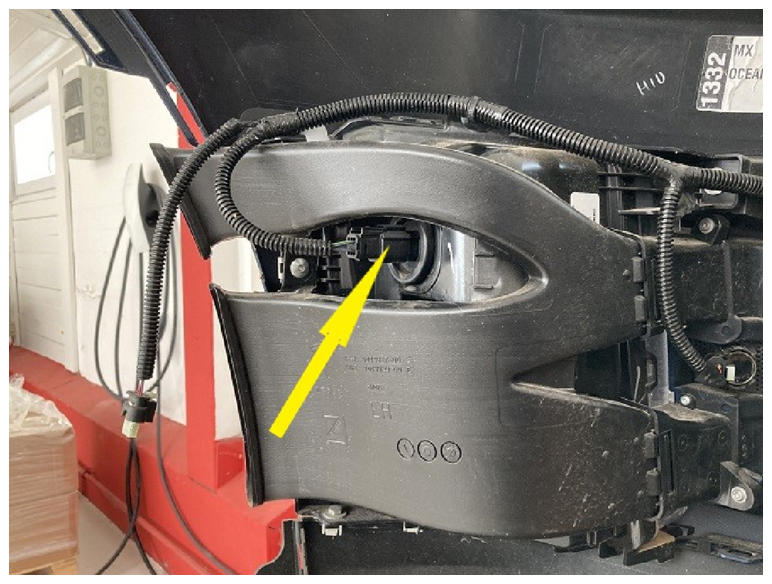

  3. Disconnect the turn/fog light electrical connector.
    G15203281Courtesy of TESLA, INC.

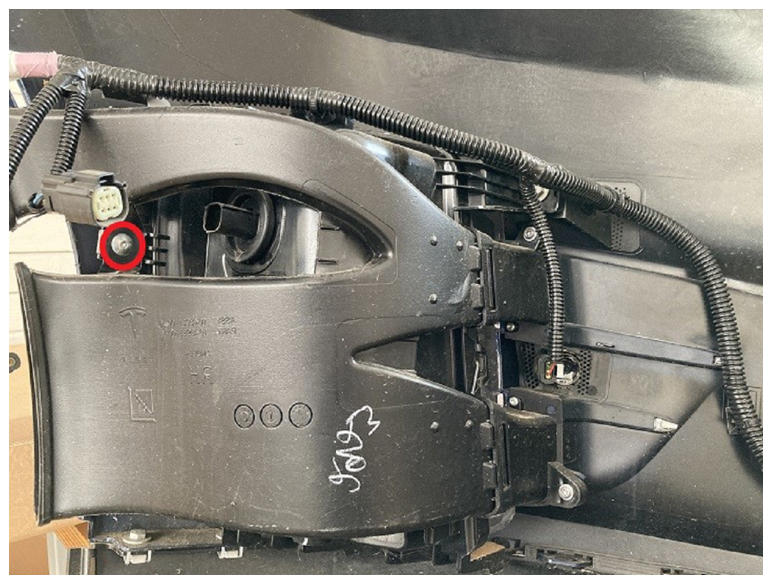

  4. If equipped, remove the bolt (torque 6 N.m) that attaches the wheelhouse air duct to the LH front turn/fog light assembly.
    G15203282Courtesy of TESLA, INC.

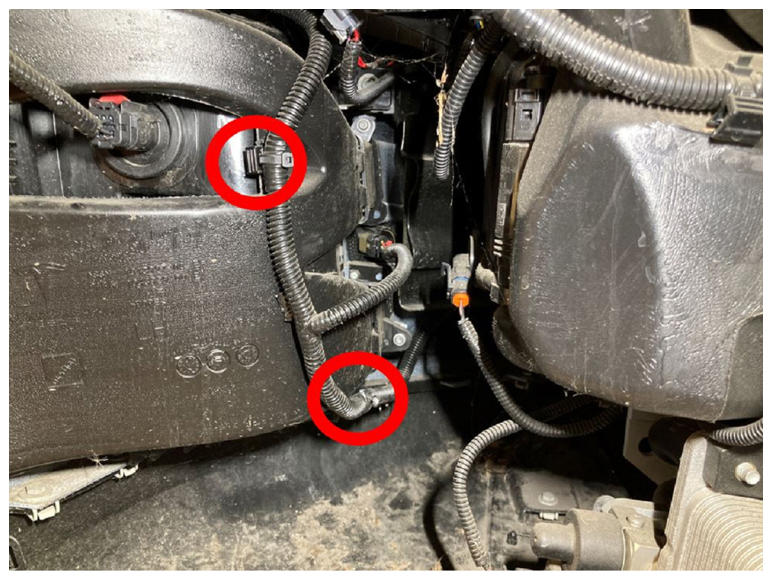

  5. Release the clips (x2) that attach the front fascia harness to the LH wheelhouse air duct.
    G15203283Courtesy of TESLA, INC.

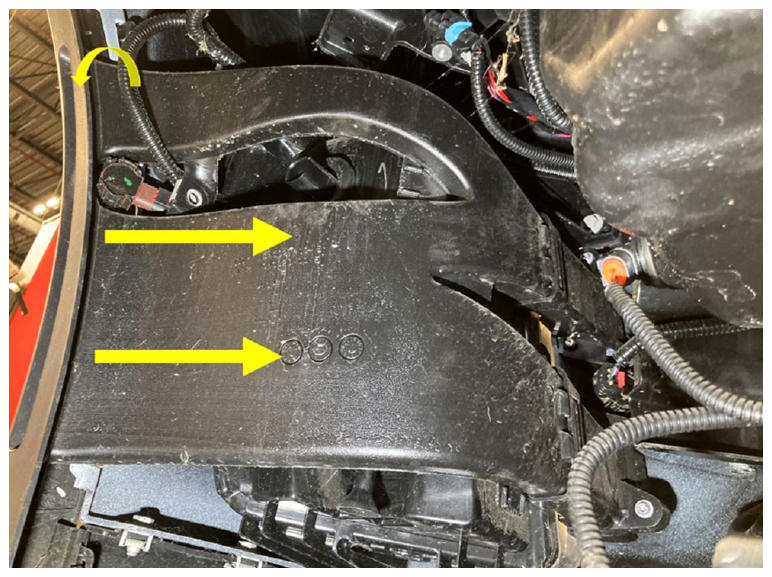

  6. Release the LH wheelhouse air duct from the LH front fender garnish, and then remove the LH wheelhouse air duct from the vehicle.
    NOTE: Take care not to damage the parking sensor harness,
    G15203284Courtesy of TESLA, INC.

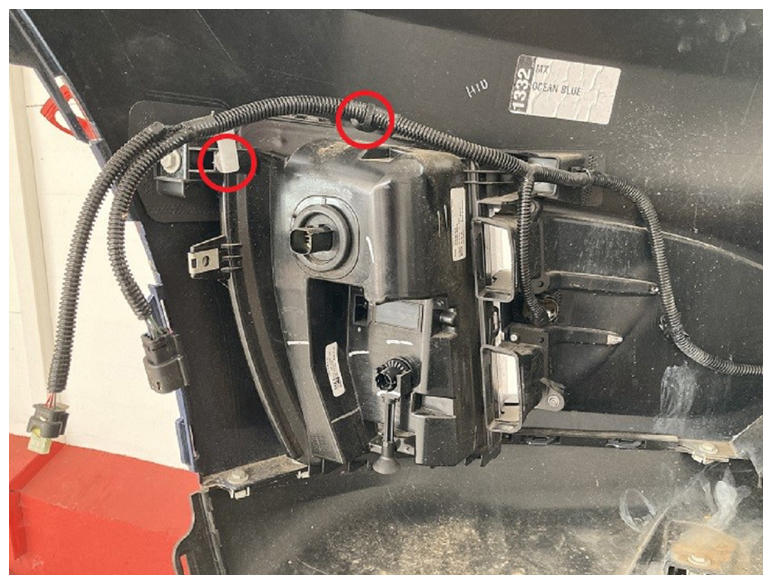

  7. Release the clips (x2) that attach the front fascia harness to the front turn/fog light assembly.
    G15203285Courtesy of TESLA, INC.

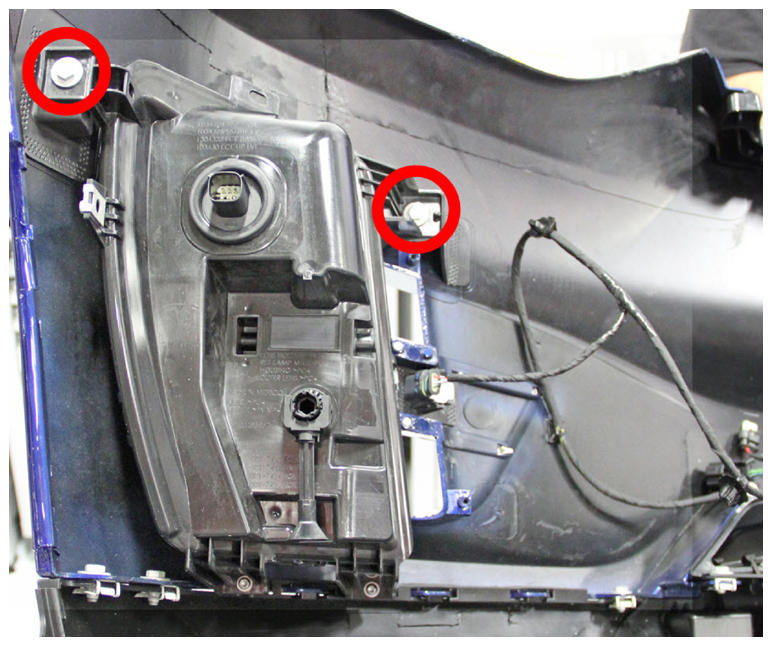

  8. Remove the bolts (x2) that attach the top of the turn/fog light assembly to the front fascia (torque 2.5 N.m).
    G15203286Courtesy of TESLA, INC.

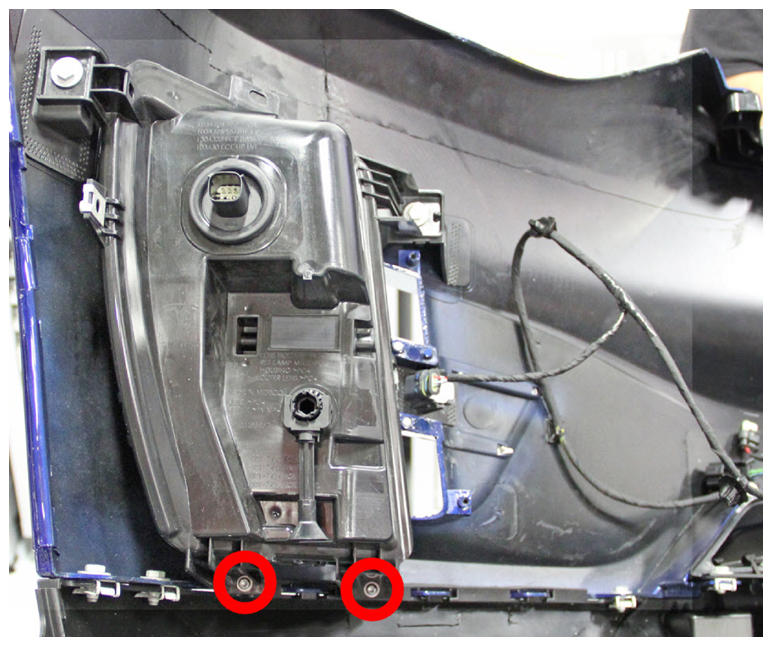

  9. Release the screws (x2) that attach the base of the turn/fog light assembly to the front fascia (torque 2 N.m).
    G15203287Courtesy of TESLA, INC.

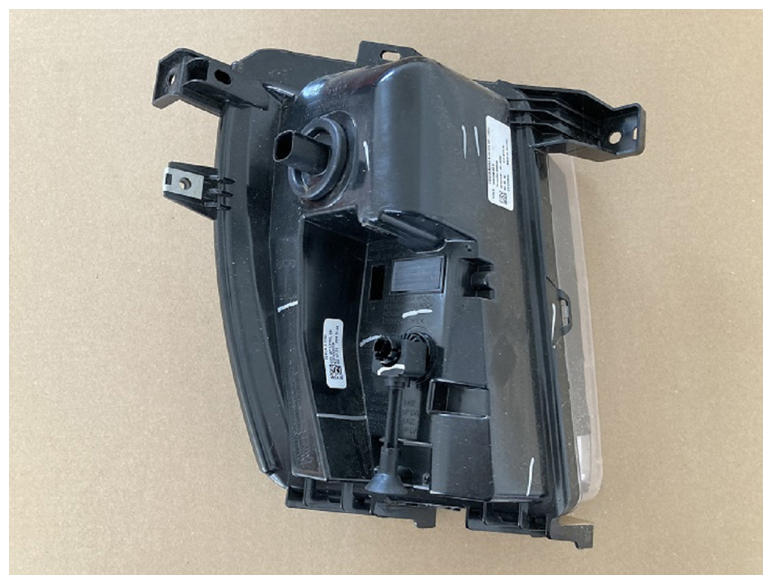

  10. Remove the LH turn/fog light assembly from the vehicle.
    G15203288Courtesy of TESLA, INC.
