Headlight Assembly - LH - Remove And Replace: Removal

  1. Remove the underhood storage unit Underhood Storage Unit (Remove And Replace) .
  2. Remove the front fascia Fascia Assembly - Front (Remove And Install) .
  3. Remove the bolts (x2) that secure the base of the headlight to the bracket (torque 4.7 N.m).
    G15203259Courtesy of TESLA, INC.
  4. Remove the bolts (x2) that secure the top of the headlight to the bracket (torque 4.7 N.m).
    G15203260Courtesy of TESLA, INC.

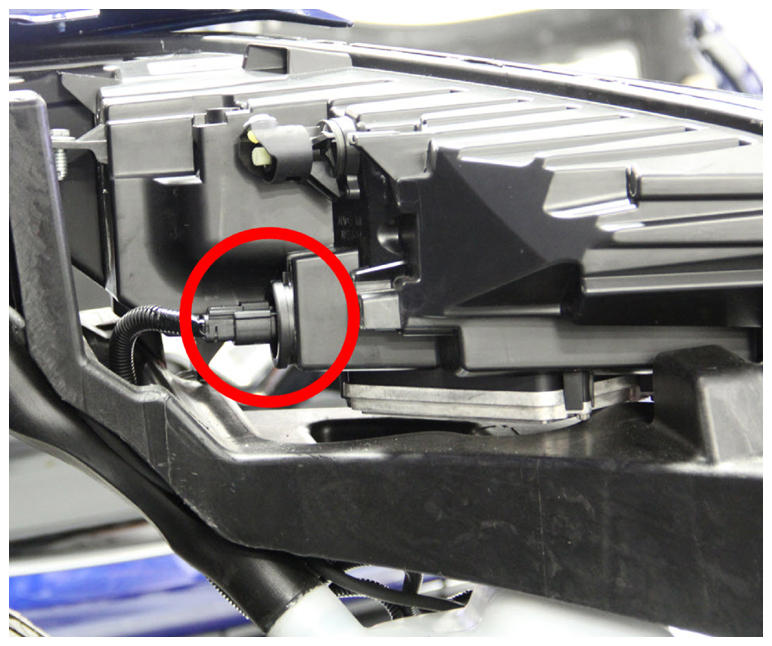

  5. Disconnect the harness from the rear of the headlight.
    G15203261Courtesy of TESLA, INC.
  6. Remove the headlight from the vehicle. Place the headlight on a soft, clean surface.
  7. Remove the inner bracket from the headlight BRACKET - HEADLIGHT - INNER - LH (REMOVE AND REPLACE) .
  8. Remove the outer bracket from the headlight BRACKET - HEADLIGHT - OUTER - LH (REMOVE AND REPLACE) .


  1. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  2. Remove the front fascia. See FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .

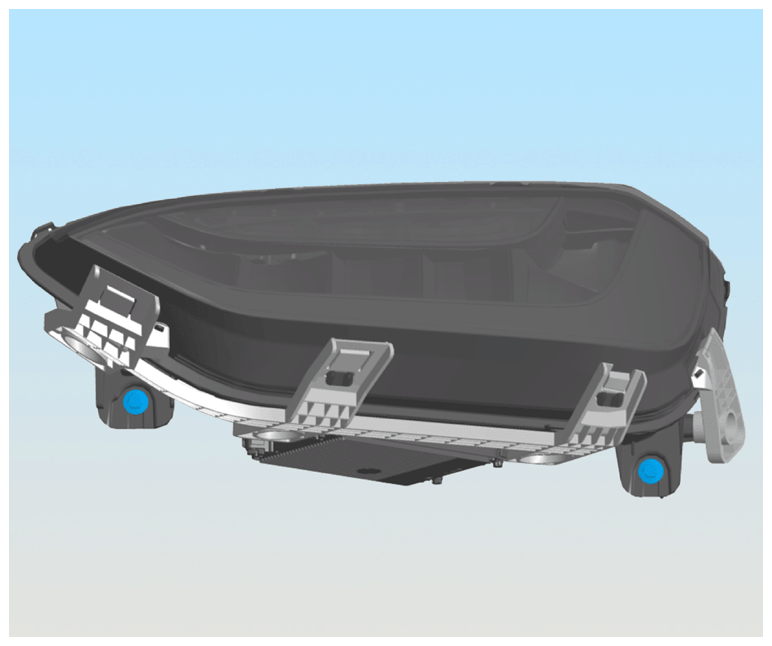

  3. Remove the bolts (x2) that secure the base of the LH headlight assembly to the front end carrier (torque 4.7 N.m).
    G15203262Courtesy of TESLA, INC.

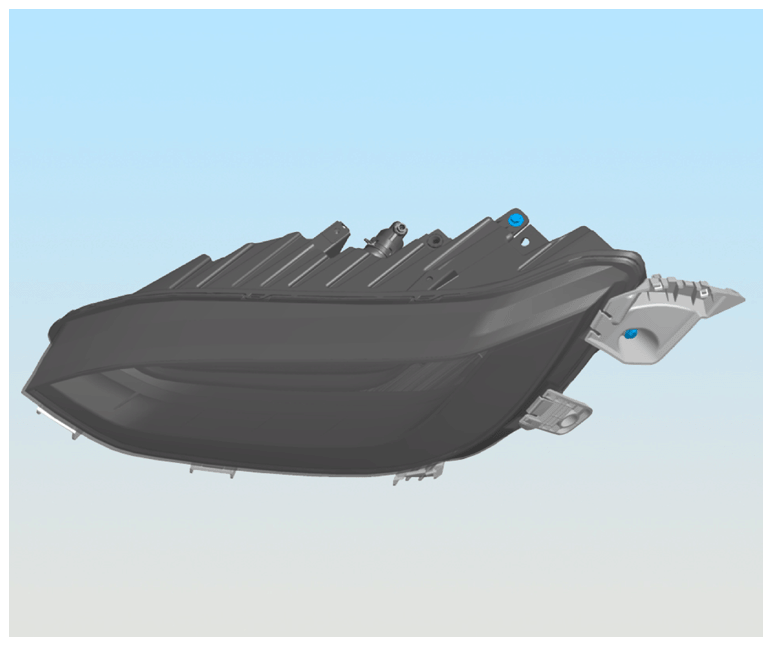

  4. Remove the bolts (x2) that secure the top of the LH headlight assembly to the front end carrier (torque 4.7 N.m).
    G15203263Courtesy of TESLA, INC.
  5. Disconnect the harness from the rear of the LH headlight assembly.
    G15203264Courtesy of TESLA, INC.
  6. Remove the LH headlight assembly from the vehicle.
