Assembly - Cover - Footwell - Passenger's - Remove And Replace: Removal

  1. Fully open the front passenger door.

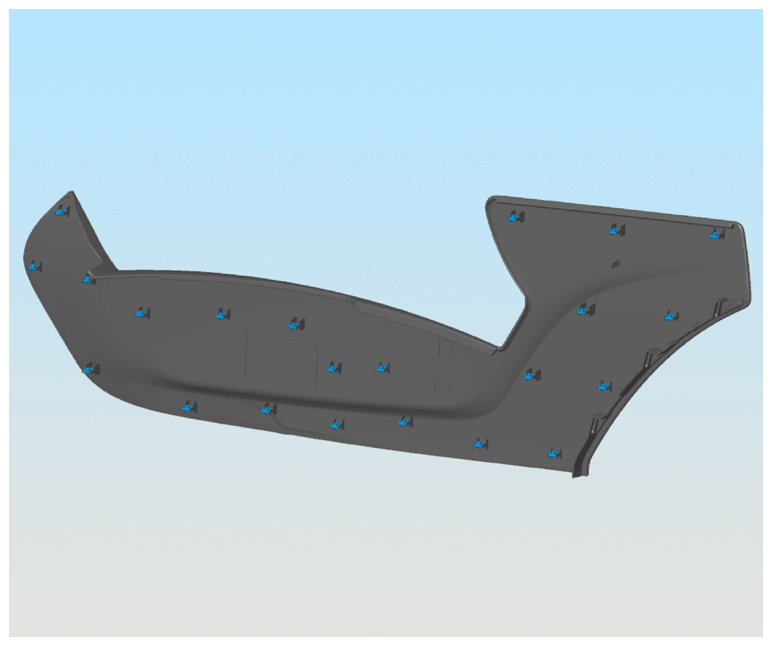

  2. Release the clips that secure the passenger side trim panel to the center console.
    G15202080Courtesy of TESLA, INC.
  3. Remove the passenger-side center console closeout extension Closeout Extension - Center Console - LH (Remove And Replace) .

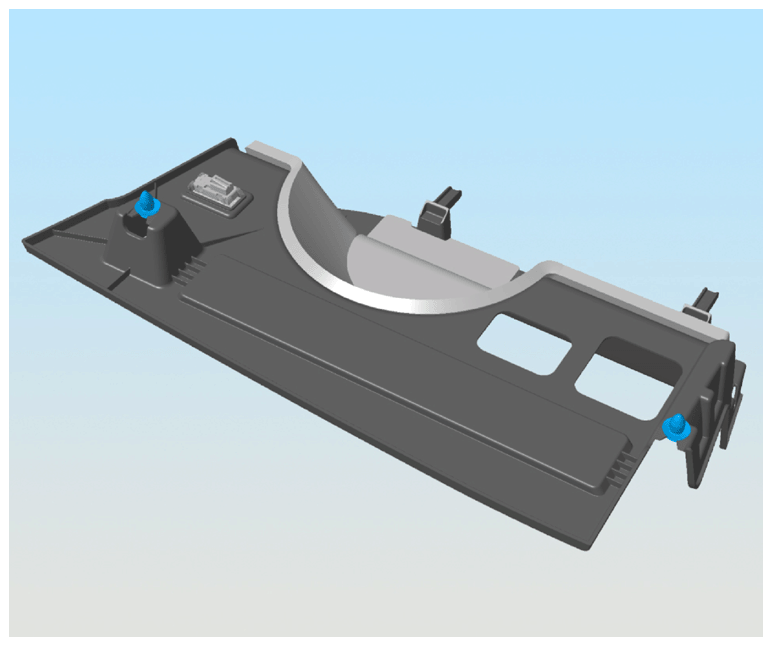

  4. Release the clips that secure the passenger-side footwell cover to the instrument panel.
    G15202081Courtesy of TESLA, INC.
  5. Release the puddle lamp electrical connector from the footwell cover.
  6. Remove the footwell cover.
    NOTE: Pressing the lower part of the A-pillar makes it easier to move the cover past the pillar.
