Assembly - Cover - Footwell - Passenger's (RHD) - Remove And Replace: Removal
- Open the LH front door.

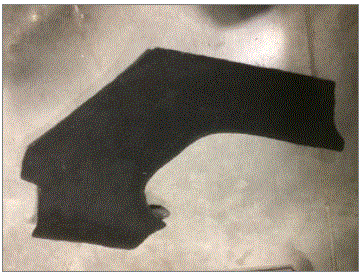

- Release the Velcro pads (x4) to remove the LH front floor mat.

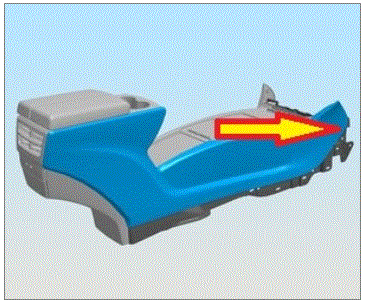

- Partially remove the LH center console side panel as illustrated.

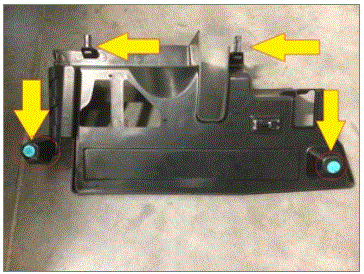

- Release the clips (x6) to remove the LH center console closeout extension.
Tip: If any clips are broken, remove and replace them.

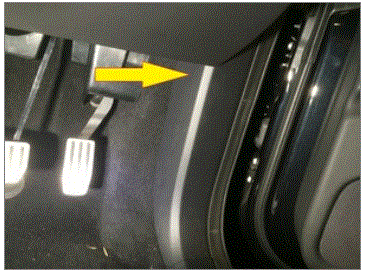

- Remove the passenger footwell cover.
Tip: Pressing the lower part of the LH A-pillar makes it easier to move the cover past the pillar.
