Panel - Closing - Upper - Front Fascia - Remove And Replace: Removal

  1. Remove the front lower grille assembly GRILLE - FRONT LOWER (REMOVE AND REPLACE) .

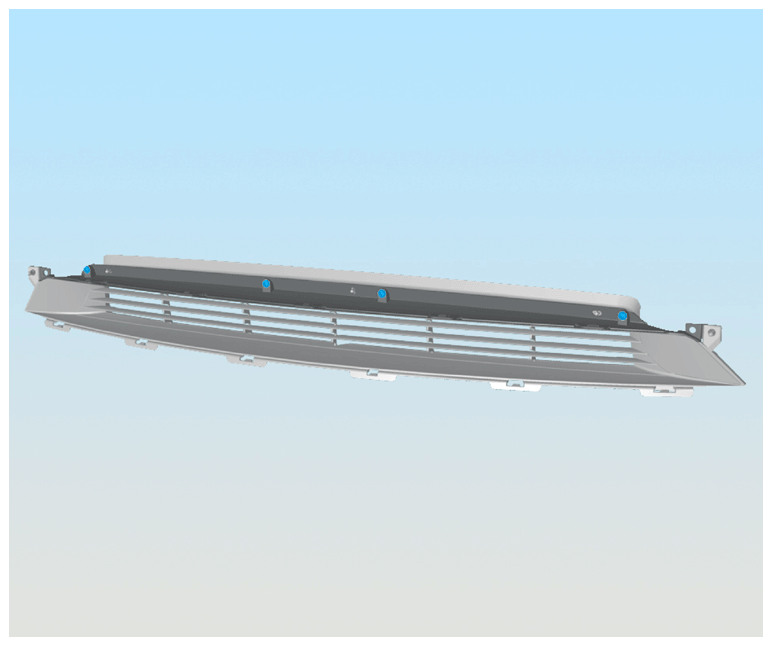

  2. Remove the screws (x4) that secure the upper closing panel to the lower grille (torque 1 N.m).
    G15199070Courtesy of TESLA, INC.

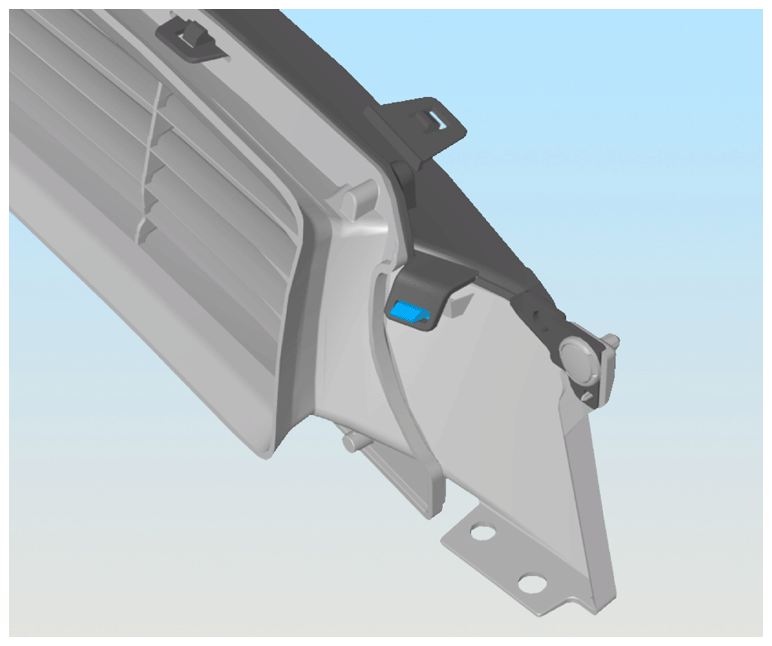

  3. Carefully release the tab that secures the RH side of the upper closing panel to the lower grille.
    CAUTION: Take care not to damage component(s).
    G15199071Courtesy of TESLA, INC.
  4. Release the clips that secure the upper closing panel to the lower grille.
  5. Remove the upper closing panel from the lower grille.
