Panel - Closing - Lower - Front Fascia - Remove And Replace: Removal

  1. Remove the upper closing panel PANEL - CLOSING - UPPER - FRONT FASCIA (REMOVE AND REPLACE) .

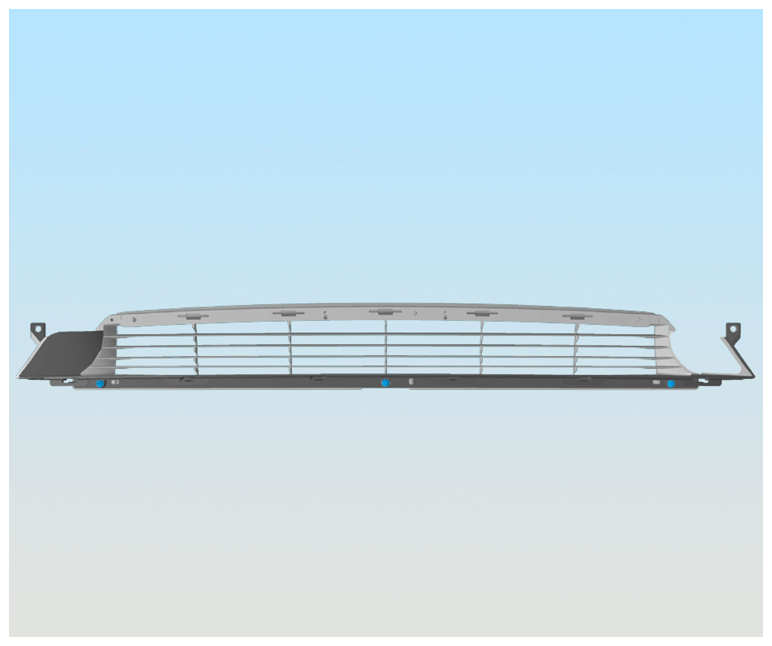

  2. Remove the screws (x3) that secure the lower closing panel to the lower grille (torque 1 N.m).
    G15199069Courtesy of TESLA, INC.
  3. Release the clips that secure the lower closing panel to the lower grille.
  4. Remove the lower closing panel from the lower grille.
