Carrier - Grille - Front Upper - Remove And Replace: Removal

  1. Remove the underhood storage unit Underhood Storage Unit (Remove And Replace) .

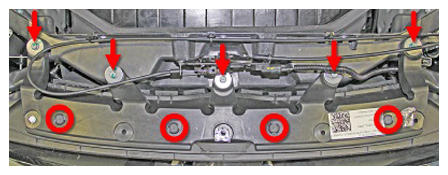

  2. Remove the push clips (x4) and bolts (x5) that secure the front upper grille carrier (torque 7 N.m).
    G15199053Courtesy of TESLA, INC.
  3. Release the clip that secures the harness on the LH side of the front upper grille carrier.
  4. Remove the upper grille carrier from the vehicle.
