Bumper Assembly - Rear - Remove And Replace: Removal

  1. Remove the rear fascia FASCIA ASSEMBLY - REAR (REMOVE AND INSTALL) .

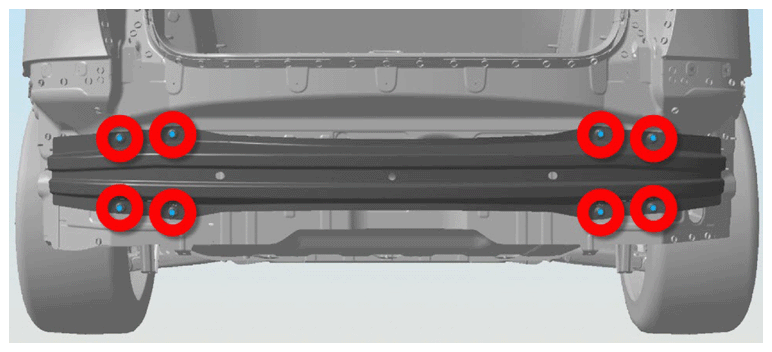

  2. Remove the nuts (x8) that secure the rear bumper to the studs on the body (torque 65 N.m).
    G15199052Courtesy of TESLA, INC.
  3. Remove the rear bumper from the vehicle.
