Light - Fog/Reverse - Rear - LH - Remove And Replace: Removal

  1. Remove the liftgate applique. See APPLIQUE - LIFTGATE (REMOVE AND REPLACE) .
  2. Open the liftgate.
  3. Remove the liftgate grille. See GRILLE - SPEAKER - LIFTGATE (REMOVE AND REPLACE) .
  4. Remove the lower liftgate trim. See TRIM - LIFTGATE - LOWER (REMOVE AND REPLACE) .
  5. Remove the middle liftgate trim. See TRIM - LIFTGATE - MIDDLE (REMOVE AND REPLACE) .

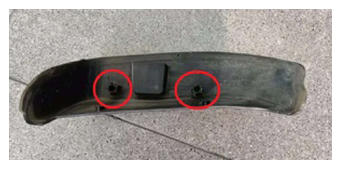

  6. Remove the LH rubber caps.
    G15203289Courtesy of TESLA, INC.

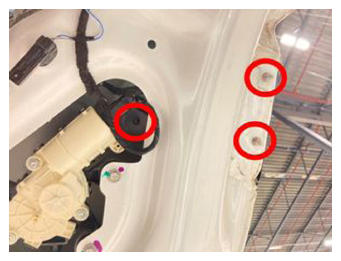

  7. Remove the fasteners that secure the liftgate lamp to the liftgate (torque 2.5 N.m).
    G15203290Courtesy of TESLA, INC.

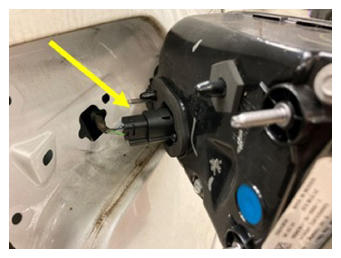

  8. Disconnect the LH liftgate lamp connector.
    G15203291Courtesy of TESLA, INC.

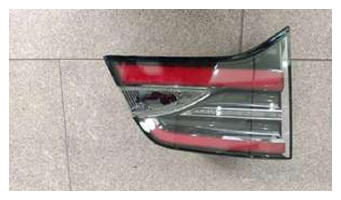

  9. Remove the LH liftgate lamp from the vehicle.
    G15203292Courtesy of TESLA, INC.
