Face Level Vent - Driver's - Outer - Remove And Replace: Removal

  1. Remove the instrument cluster frame ASSEMBLY - FRAME - INSTRUMENT CLUSTER (REMOVE AND REPLACE) .

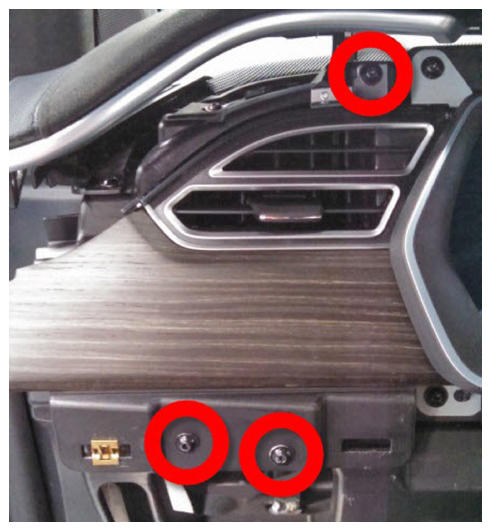

  2. Remove the screws (x3) that secure the outer face level vent to the IP carrier (torque 2.3 N.m).
    G15202109Courtesy of TESLA, INC.
  3. Release the clips (x2) that secure the outer face level vent to the IP carrier.
  4. Remove the outer face level vent from the vehicle.
