Face Level Vent - Driver's - Inner - Remove And Replace: Removal

  1. Remove the instrument cluster frame ASSEMBLY - FRAME - INSTRUMENT CLUSTER (REMOVE AND REPLACE) .

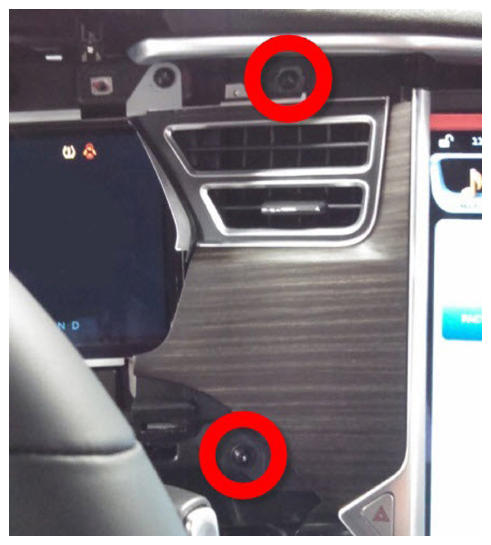

  2. Remove the screws (x2) that secure the inner face level vent to the IP carrier (torque 2.3 N.m).
    G15202108Courtesy of TESLA, INC.
  3. Release the clips (x3) that secure the inner face level vent to the IP carrier.
  4. Remove the inner face level vent from the vehicle.
